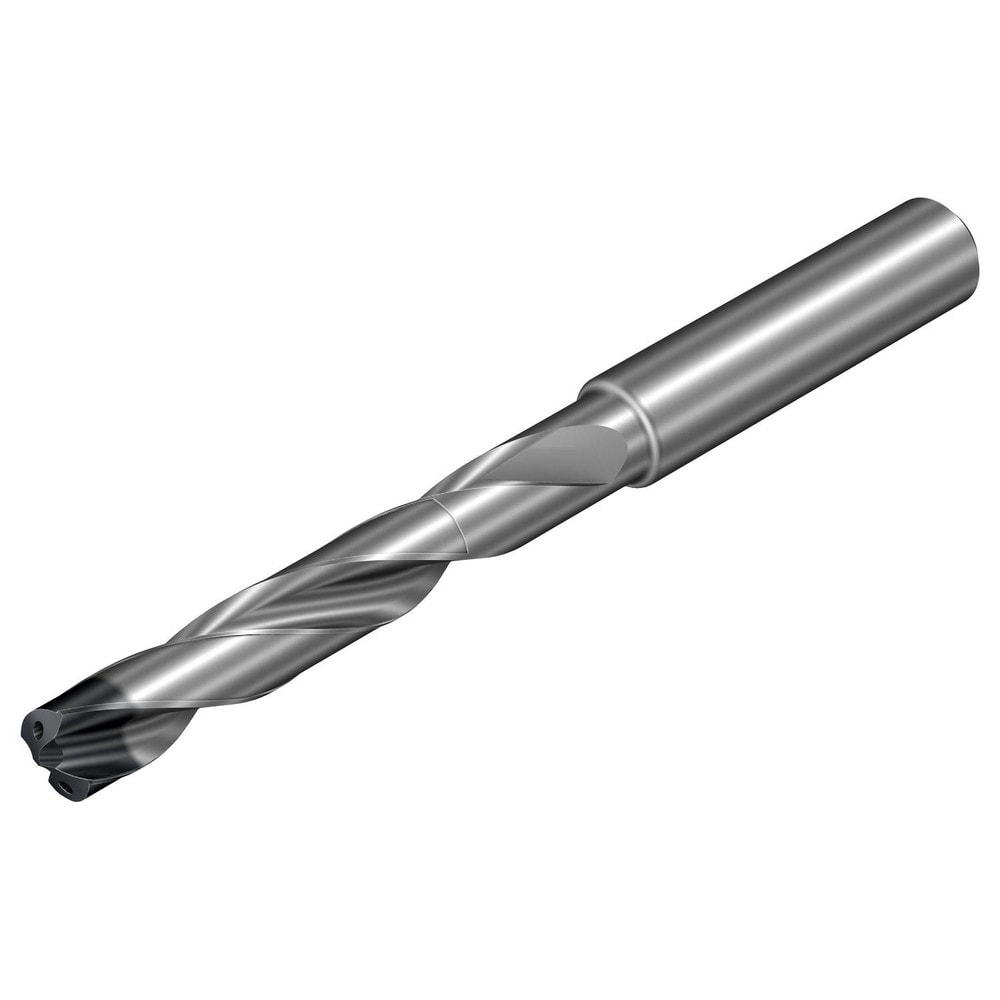

Taper Length Drill: 0.1496" Dia, 140 deg, Solid Carbide
Item #: 76649292
Brand: Sandvik Coromant
Model #: 8421214
Product Specifications
| Drill Bit Size (mm) | 3.80 |
| Drill Bit Size (Decimal Inch) | 0.1496 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight |
| Shank Diameter (mm) | 6.0000 |
| Flute Length (Decimal Inch) | 1.8898 |
| Flute Length x Diameter Ratio | 8xD |
| Overall Length (mm) | 90 |
| Overall Length (Decimal Inch) | 3-2/4 |
| Material Application | Superalloys & Titanium |
| Series | 860.1 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 1.2240 |
| Maximum Drilling Depth (mm) | 31.09 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.000 |
| Drill Point Length (Decimal Inch) | 0.0272 |
| Flute Length (mm) | 48.00 |
| Drill Point Length (mm) | 0.69 |
| Tool Performance | High Performance |
| Specification Number | DIN 6535 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| Country of Origin | China |
