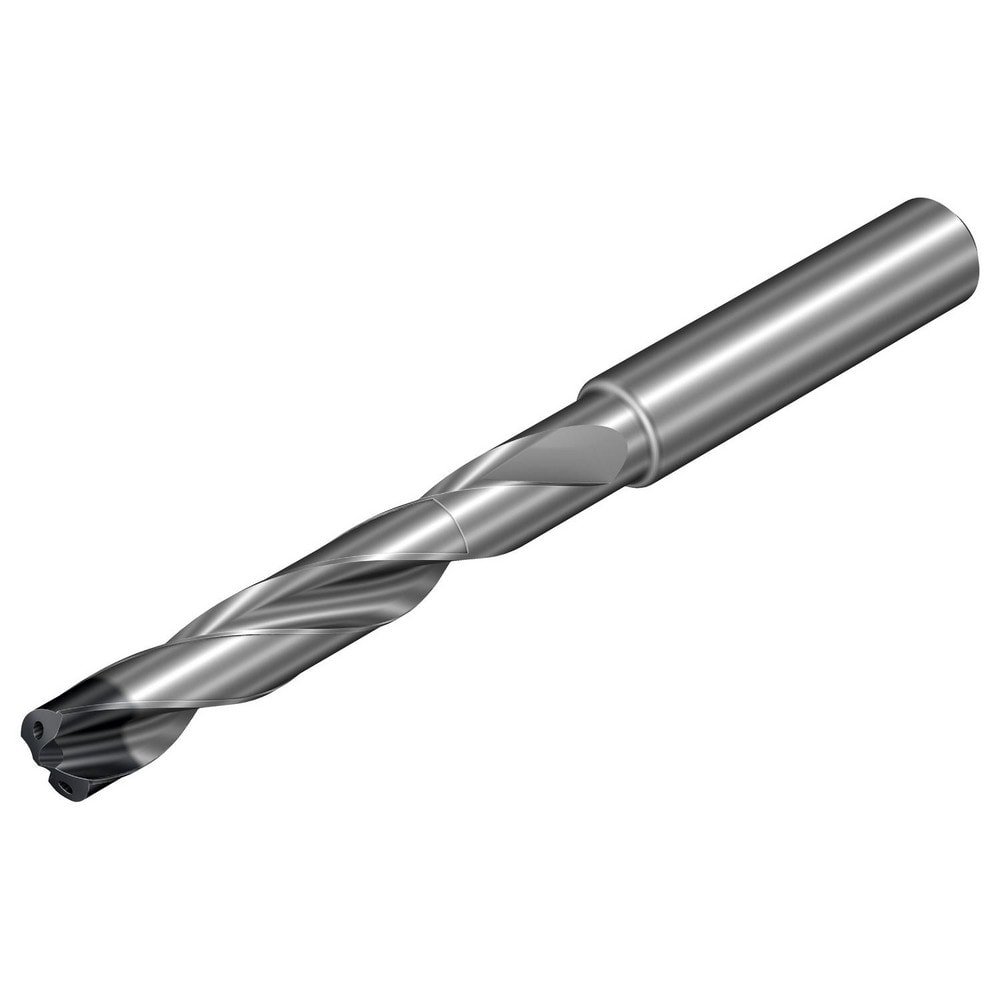

Screw Machine Length Drill Bit: 11.00 mm Dia, 140 deg Point, Solid Carbide
Item #: 76661578
Brand: Sandvik Coromant
Model #: 8420932
Product Specifications
| Drill Bit Size (mm) | 11.00 |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlSiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0158 |
| Shank Diameter (mm) | 12.00 |
| Series | 860.1 |
| Proprietary Coating/Finish | TiAlSiN |
| Drill Point Length (mm) | 2.00 |
| Drill Point Length (Decimal Inch) | 0.0788 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Flute Length (Decimal Inch) | 2.1654 |
| Flute Length (mm) | 55.00 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| Drill Bit Size (mm) | 11.00 |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlSiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0158 |
| Shank Diameter (mm) | 12.00 |
| Series | 860.1 |
| Proprietary Coating/Finish | TiAlSiN |
| Drill Point Length (mm) | 2.00 |
| Drill Point Length (Decimal Inch) | 0.0788 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Flute Length (Decimal Inch) | 2.1654 |
| Flute Length (mm) | 55.00 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| MSC Part # | 76661578 |
| Mfr Part # | 8420932 |
| Country of Origin Country of Origin is subject to change | China |
