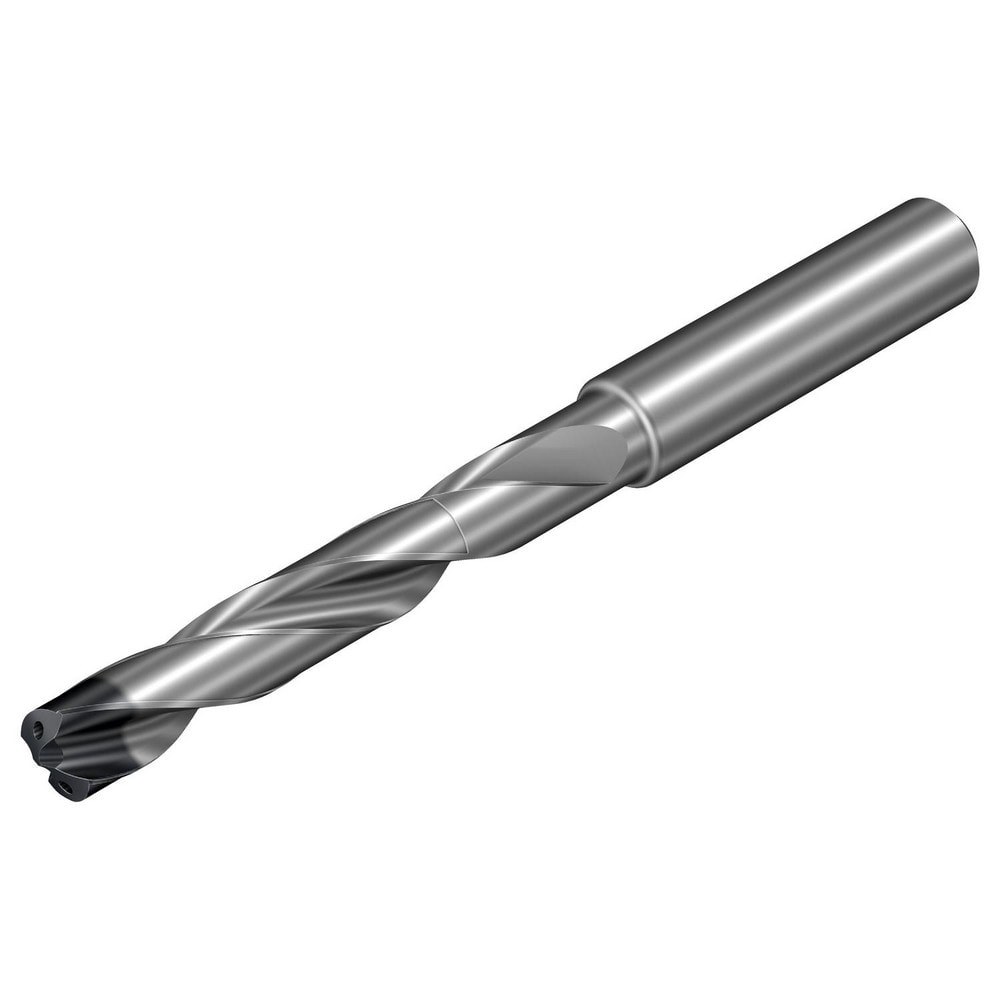

Taper Length Drill: 0.3125" Dia, 140 deg, Solid Carbide
Item #: 76661537
Brand: Sandvik Coromant
Model #: 8421271
Product Specifications
| Drill Bit Size (mm) | 7.94 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight |
| Shank Diameter (mm) | 8.0000 |
| Flute Length (Decimal Inch) | 3.3071 |
| Flute Length x Diameter Ratio | 8xD |
| Overall Length (mm) | 126 |
| Overall Length (Decimal Inch) | 5 |
| Material Application | Superalloys & Titanium |
| Series | 860.1 |
| Shank Diameter (Decimal Inch) | 0.315 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 2.5575 |
| Maximum Drilling Depth (mm) | 64.96 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.000 |
| Drill Point Length (Decimal Inch) | 0.0569 |
| Flute Length (mm) | 84.00 |
| Drill Point Length (mm) | 1.44 |
| Tool Performance | High Performance |
| Specification Number | DIN 6535 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| Drill Bit Size (mm) | 7.94 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight |
| Shank Diameter (mm) | 8.0000 |
| Flute Length (Decimal Inch) | 3.3071 |
| Flute Length x Diameter Ratio | 8xD |
| Overall Length (mm) | 126 |
| Overall Length (Decimal Inch) | 5 |
| Material Application | Superalloys & Titanium |
| Series | 860.1 |
| Shank Diameter (Decimal Inch) | 0.315 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 2.5575 |
| Maximum Drilling Depth (mm) | 64.96 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.000 |
| Drill Point Length (Decimal Inch) | 0.0569 |
| Flute Length (mm) | 84.00 |
| Drill Point Length (mm) | 1.44 |
| Tool Performance | High Performance |
| Specification Number | DIN 6535 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| MSC Part # | 76661537 |
| Mfr Part # | 8421271 |
| Country of Origin Country of Origin is subject to change | China |
