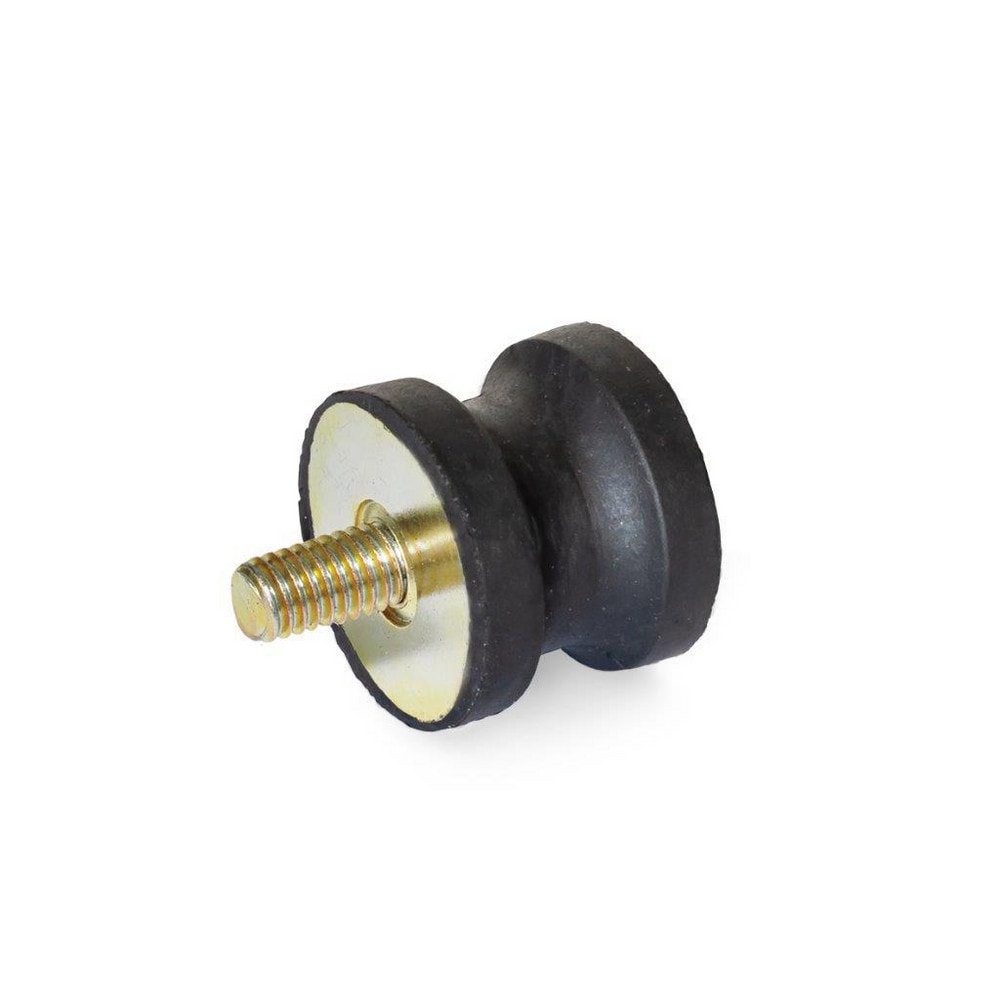

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 142.00 N; Top Diameter: 15.00; Bottom Diameter: 15; Thread Size: #8-32; Overall Width: 15 mm
Item #: 71012926
Brand: J.W. Winco
Model #: 356.2-15-15-12-8-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 142.00 N |
| Top Diameter | 15.00 |
| Bottom Diameter | 15 |
| Thread Size | #8-32 |
| Overall Width | 15 mm |
| Overall Diameter | 15 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.1500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud; Plate |
| Shape | Round |
| Thread Depth | 4.0000 |
| Thread Pitch | 0.794 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 28 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 142.00 N |
| Top Diameter | 15.00 |
| Bottom Diameter | 15 |
| Thread Size | #8-32 |
| Overall Width | 15 mm |
| Overall Diameter | 15 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.1500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud; Plate |
| Shape | Round |
| Thread Depth | 4.0000 |
| Thread Pitch | 0.794 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 28 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71012926 |
| Mfr Part # | 356.2-15-15-12-8-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
