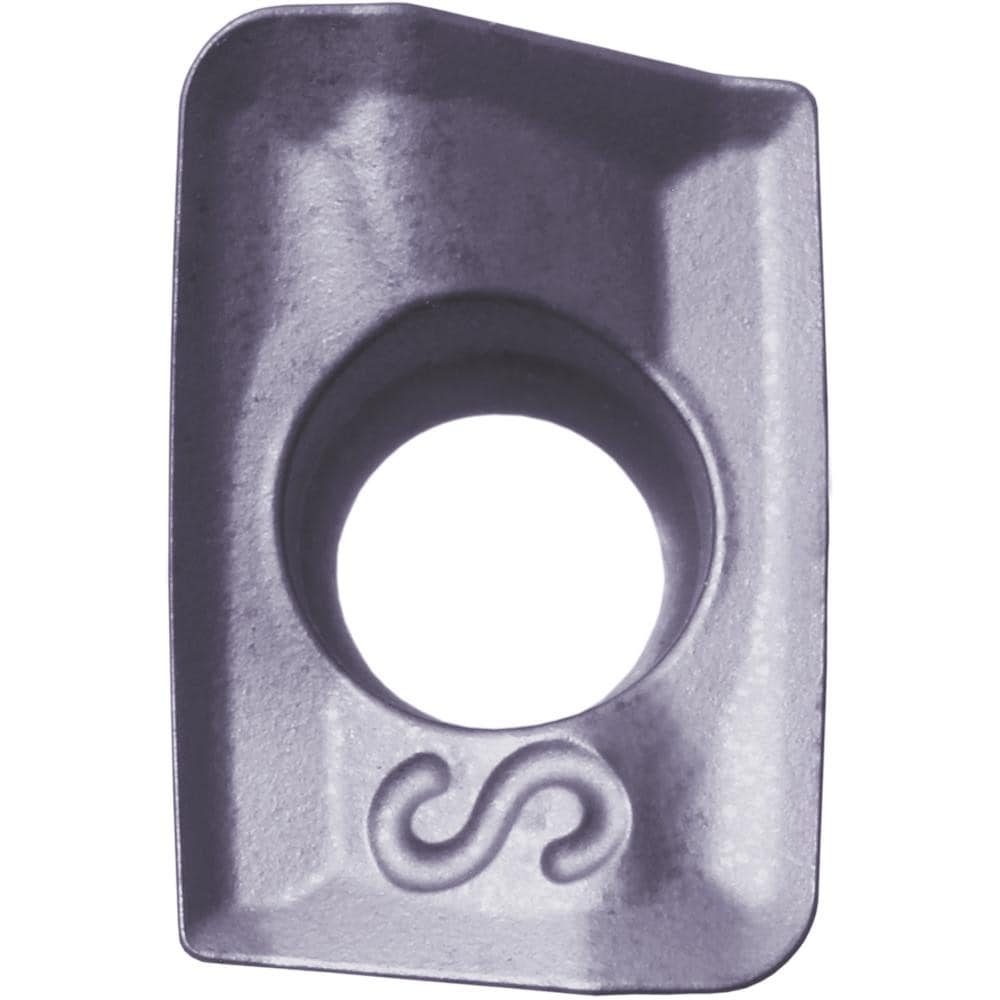

Milling Insert: BDMT070304ER-JS PR1825, Carbide
Item #: 86511177
Brand: Kyocera
Model #: TLT00063
Product Specifications
| Insert Style | BDMT |
| Insert Size | 070304 |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1024 |
| Thickness (mm) | 2.6000 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 16.000 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | MECX Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.3000 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Cutting Edge Effective Length (mm) | 6.70 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2638 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | BDMT070304ERJSPR1825 |
| Iso Code | BDMT070304ER-JS |
| Cutting Edge Style | Low Cutting Force; Honed |
| Manufacturers Catalog Number | BDMT070304ERJSPR1825 |
| Chip Breaker | ER-JS |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.1811 |
| Width (mm - 2 Decimals) | 4.60 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
