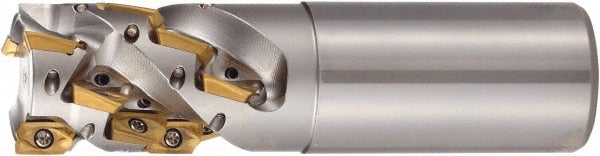

Indexable Square-Shoulder End Mill: PSEL15R150FA125-2-38, 1-1/2" Cut Dia, 2.362" Max Depth of Cut, 1-1/4" Dia Weldon Flat Shank
Item #: 55702575
Brand: OSG
Model #: 53000011
Product Specifications
| Cutting Diameter | 1.5000 in |
| Cutting Diameter | 1-1/2 |
| Overall Length (Decimal Inch) | 4.6420 |
| Maximum Depth of Cut (Decimal Inch) | 2.3620 |
| Cutter Style | PSEL |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 53000 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 4.642 |
| Insert Compatibility | ZDKT15... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Cutting Diameter | 1.5000 in |
| Cutting Diameter | 1-1/2 |
| Overall Length (Decimal Inch) | 4.6420 |
| Maximum Depth of Cut (Decimal Inch) | 2.3620 |
| Cutter Style | PSEL |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 53000 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 4.642 |
| Insert Compatibility | ZDKT15... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| MSC Part # | 55702575 |
| Mfr Part # | 53000011 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
