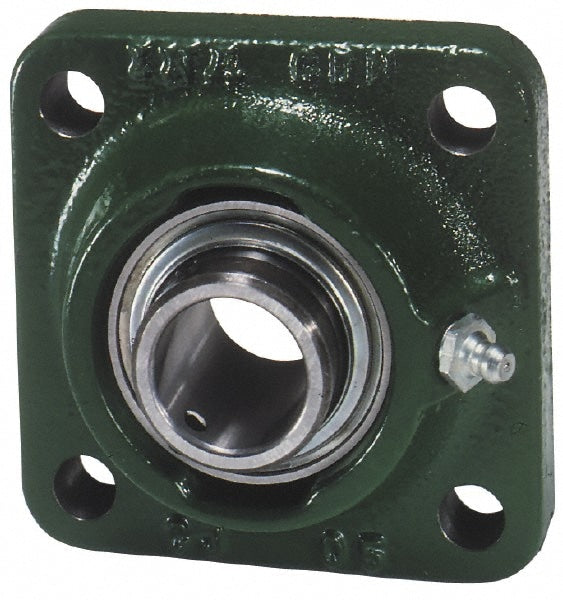

35mm ID, 4.6654" OAL x 1.9843" OAH 4-Bolt Lock Col Econ Seal Met
Item #: 57131609
Brand: INA Bearing
Model #: PCJ35
Product Specifications
| Type | 4Bolt Lock Col Econ Seal Met |
| Inside Diameter (mm) | 35.0000 |
| Inside Diameter (Decimal Inch) | 1.3780 |
| Overall Length (Decimal Inch) | 4.6654 |
| Overall Height (Decimal Inch) | 1.9843 |
| Static Load Capacity | 3450.0 |
| Dynamic Load Capacity (Lb.) | 5800 |
| Distance Between Base And Center (mm) | 118.5000 |
| Distance Between Base And Center (Decimal Inch) | 4.6650 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.600 |
| Flange Thickness (Decimal Inch) | 0.5315 |
| Type | 4Bolt Lock Col Econ Seal Met |
| Inside Diameter (mm) | 35.0000 |
| Inside Diameter (Decimal Inch) | 1.3780 |
| Overall Length (Decimal Inch) | 4.6654 |
| Overall Height (Decimal Inch) | 1.9843 |
| Static Load Capacity | 3450.0 |
| Dynamic Load Capacity (Lb.) | 5800 |
| Distance Between Base And Center (mm) | 118.5000 |
| Distance Between Base And Center (Decimal Inch) | 4.6650 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.600 |
| Flange Thickness (Decimal Inch) | 0.5315 |
| MSC Part # | 57131609 |
| Mfr Part # | PCJ35 |
