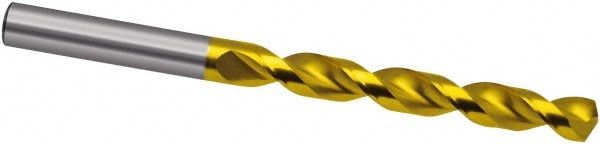

Jobber Drill: Letter I, 130 deg Point, Powdered Metal
Item #: 58524000
Brand: Guhring
Model #: 9055220069000
Product Specifications
| Drill Bit Size (Letter) | I |
| Drill Bit Size (Decimal Inch) | 0.2720 |
| Drill Bit Material | Powdered Metal |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.2717 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
| Spiral Type | Regular |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Series | 5522 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.9 |
| Maximum Drilling Depth (Decimal Inch) | 2.3090 |
| Maximum Drilling Depth (mm) | 58.65 |
| Shank Length (mm) | 40 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Letter) | I |
| Drill Bit Size (Decimal Inch) | 0.2720 |
| Drill Bit Material | Powdered Metal |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.2717 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
| Spiral Type | Regular |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Series | 5522 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.9 |
| Maximum Drilling Depth (Decimal Inch) | 2.3090 |
| Maximum Drilling Depth (mm) | 58.65 |
| Shank Length (mm) | 40 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 58524000 |
| Mfr Part # | 9055220069000 |
| Country of Origin Country of Origin is subject to change | Germany |
