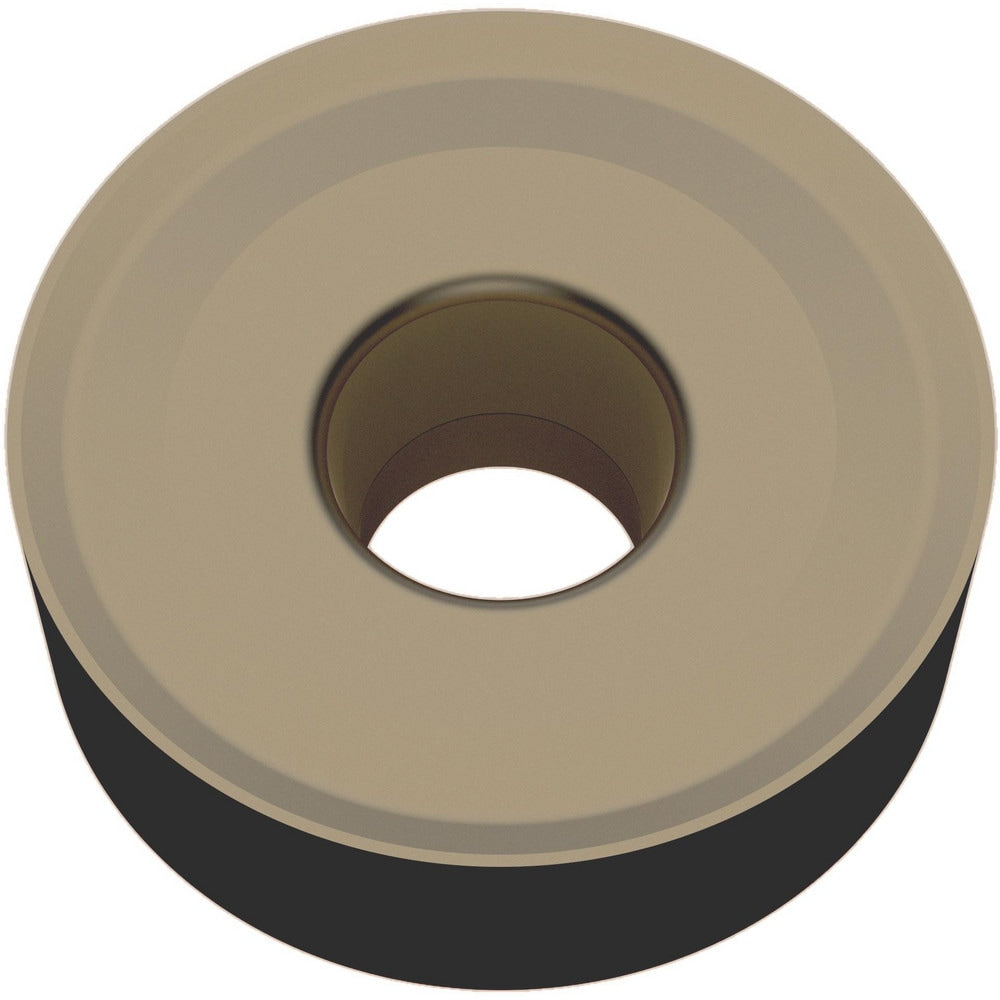

Turning Insert: RCMX1204M0 UE6110, Carbide
Item #: 93653566
Brand: Mitsubishi
Model #: 428269
Product Specifications
| ANSI Insert Code | RCMX1204M0 |
| ISO Insert Code | RCMX1204M0 |
| Relief Angle | 7 |
| Insert Style | RCMX |
| Corner Radius (mm) | 6.00 |
| Manufacturer Grade | UE6110 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 4.00 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Inscribed Circle (mm) | 12.00 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | R |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | MO |
| ANSI Size Code | 1204M0 |
| ISO Size Code | 1204M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 12 |
| Country of Origin | Japan |
