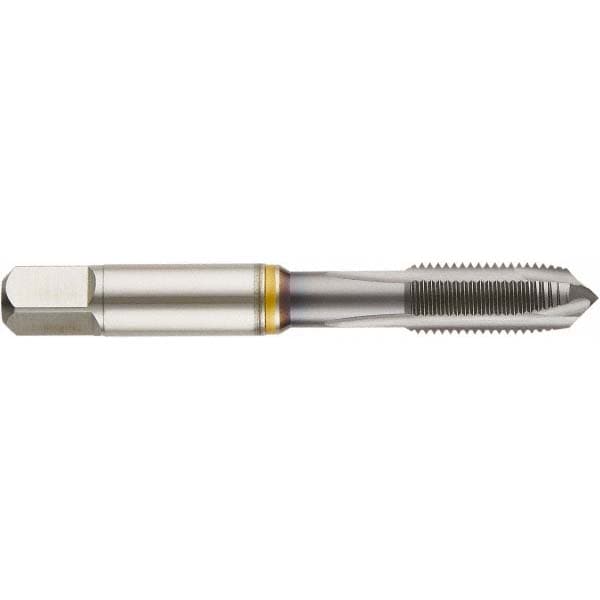

Spiral Point Tap: 5/8-18 UNF, 4 Flutes, Plug Chamfer, 2B/3B Class of Fit, HSS-E Cobalt, Ignator Coated
Item #: 04668844
Brand: Guhring
Model #: 9048865158750
Product Specifications
| Thread Size (Inch) | 5/8-18 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS-E Cobalt |
| Thread Limit | H4/H5 |
| Class Of Fit | 2B/3B |
| Coating/Finish | Ignator |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Material Application | Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 18 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Overall Length (Decimal Inch) | 3.811 |
| Thread Length (Decimal Inch) | 0.8660 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Application | Through-Hole Threading |
| Measurement Type | Decimal Inch |
| Series | 4886 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
