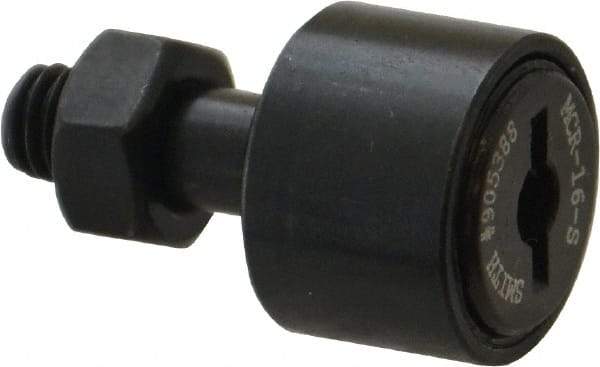

Accurate Bushing - 16mm Roller Diam x 11mm Width, 6mm Stud Diam x 16mm Length, Sealed Stud Cam Follower - Steel, 8mm Thread Length, M6x1 Thread, 28mm OAL, 3,800 N Dynamic Cap, 3,750 N Static Cap
Item #: 36670891
Brand: Accurate Bushing
Model #: MCR-16-S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Sealed Stud Cam Follower |
| Roller Diameter (mm) | 16.000 |
| Roller Width (mm) | 11 |
| Stud Diameter (mm) | 6.00 |
| Dynamic Load Capacity (N) | 3800 |
| Static Load Capacity | 3750 |
| Length (mm) | 28.00 |
| Thread Size | M6x1 |
| Material | Steel |
| Stud Length (mm) | 16.00 |
| Thread Length (mm) | 8.00 |
| Roller Type | Caged Roller |
