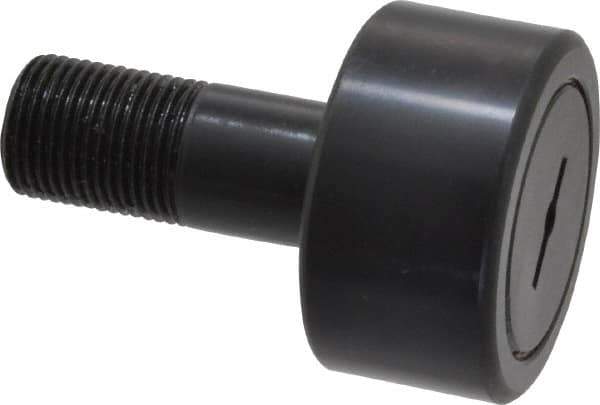

Accurate Bushing - 1-7/8" Roller Diam x 1" Width, 3/4" Stud Diam x 1-3/4" Length, Stud Cam Follower - Steel, 7/8" Thread Length, 3/4-16 Thread, 2-3/4" OAL, 7,870 Lb Dynamic Cap, 7,950 Lb Static Cap
Item #: 36670651
Brand: Accurate Bushing
Model #: CR-1-7/8-X
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Stud Cam Follower |
| Roller Diameter (Inch) | 1-7/8 |
| Roller Width (Decimal Inch) | 1.0000 |
| Stud Diameter (Decimal Inch) | 0.7500 |
| Dynamic Load Capacity (Lb.) | 7870 |
| Static Load Capacity (Pounds) | 7950.00 |
| Length (Decimal Inch) | 2.750 |
| Thread Size | 3/4-16 |
| Material | Steel |
| Stud Length (Decimal Inch) | 1.7500 |
| Stud Length (Inch) | 1-3/4 |
| Thread Length (Inch) | 7/8 |
