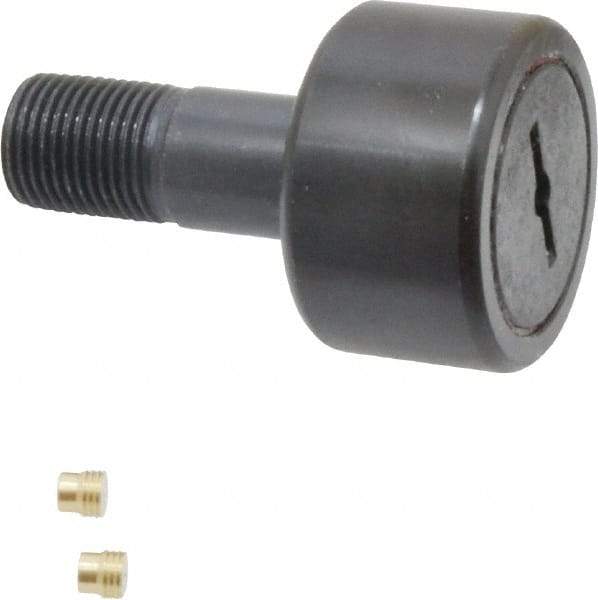

Accurate Bushing - 1-1/2" Roller Diam x 7/8" Width, 5/8" Stud Diam x 1-1/2" Length, Stud Cam Follower - Steel, 3/4" Thread Length, 5/8-18 Thread, 2-3/8" OAL, 5,560 Lb Dynamic Cap, 5,730 Lb Static Cap
Item #: 36670628
Brand: Accurate Bushing
Model #: CR-1-1/2-X
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Stud Cam Follower |
| Roller Diameter (Inch) | 1-1/2 |
| Roller Width (Decimal Inch) | 0.8750 |
| Stud Diameter (Decimal Inch) | 0.6250 |
| Dynamic Load Capacity (Lb.) | 5560 |
| Static Load Capacity (Pounds) | 5730.00 |
| Length (Decimal Inch) | 2.375 |
| Thread Size | 5/8-18 |
| Material | Steel |
| Stud Length (Decimal Inch) | 1.5000 |
| Stud Length (Inch) | 1-1/2 |
| Thread Length (Inch) | 3/4 |
