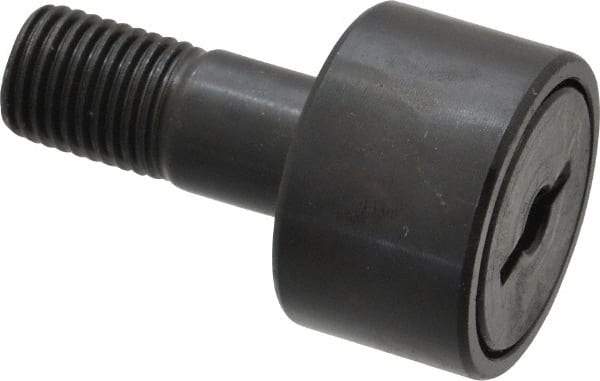

Accurate Bushing - 1" Roller Diam x 5/8" Width, 7/16" Stud Diam x 1" Length, Stud Cam Follower - Steel, 1/2" Thread Length, 7/16-20 Thread, 1-5/8" OAL, 3,030 Lb Dynamic Cap, 3,100 Lb Static Cap
Item #: 36670446
Brand: Accurate Bushing
Model #: CR-1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Stud Cam Follower |
| Roller Diameter (Inch) | 1 |
| Roller Width (Decimal Inch) | 0.6250 |
| Stud Diameter (Decimal Inch) | 0.4375 |
| Dynamic Load Capacity (Lb.) | 3030 |
| Static Load Capacity (Pounds) | 3100.00 |
| Length (Decimal Inch) | 1.625 |
| Thread Size | 7/16-20 |
| Material | Steel |
| Stud Length (Inch) | 1 |
| Thread Length (Inch) | 1/2 |
