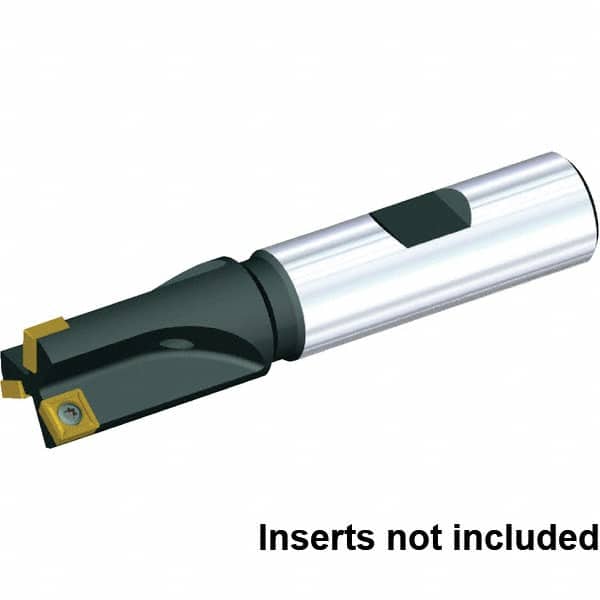

1″ Diam, 25.4mm Max Depth, 1″ Shank Diam, 3 Insert Indexable Counterbore Uses SPHX120404R.. Inserts, 4″ OAL, Weldon Shank
Item #: 36651867
Brand: Kennametal
Model #: 1992698
Product Specifications
| Counterbore Diameter (Decimal Inch) | 1.6250 |
| Counterbore Diameter (Inch) | 1 |
| Counterbore Diameter (mm) | 41.28 |
| Maximum Counterbore Depth (Decimal Inch) | 1.0000 |
| Maximum Counterbore Depth (mm) | 25.40 |
| Shank Diameter (mm) | 25.40 |
| Number of Counterbore Inserts | 3 |
| Insert Style | SPHX120404R.. |
| Minimum Cutting Diameter (mm) | 41.28 |
| Minimum Cutting Diameter (Decimal Inch) | 1.6250 |
| Overall Length (mm) | 114.31 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4 |
| Number of Flutes | 3 |
| Toolholder Material | Steel |
| Shank Type | Weldon Flat |
| Through Coolant | NonThrough Coolant; None |
| Pilot Hole Diameter Compatibility (Inch) | 1.0612; 1.0612 in |
| Shank Length (Decimal Inch) | 2.2992 |
| Shank Length (mm) | 58.40 |
