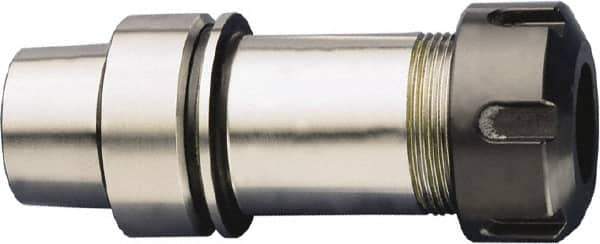

HAIMER - 0.5mm to 10mm Capacity, 3.94" Projection, HSK32E Hollow Taper, ER16 Collet Chuck - 0.0001" TIR
Item #: 36433456
Brand: HAIMER
Model #: E32.021.16
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK32E |
| Projection (Decimal Inch) | 3.9400 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3900 |
| Type | ER Collet |
| Nose Diameter (Decimal Inch) | 1.1000 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Collet Nut Diameter (Decimal Inch) | 0.6299 |
| Collet Nut Diameter (mm) | 16.00 |
