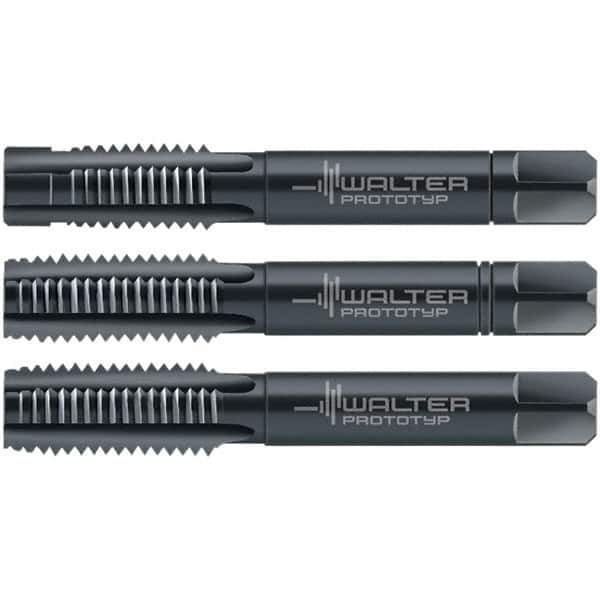

Walter-Prototyp - M4x0.70 Metric, 3 Flute, Modified Bottoming & Plug, Oxide Finish, Cobalt Tap Set - Right Hand Cut, 45mm OAL, 0.4331" Thread Length, 6HX Class of Fit, Series 30063
Item #: 36341527
Brand: Walter-Prototyp
Model #: 5079127
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Thread Size | M4x0.70 |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming; Plug |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Class of Fit | 6HX |
| Thread Length (Decimal Inch) | 0.4331 |
| Overall Length (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 45.00 |
| Thread Standard | Metric |
| Series/List | 30063 |
| Number of Pieces | 3 |
