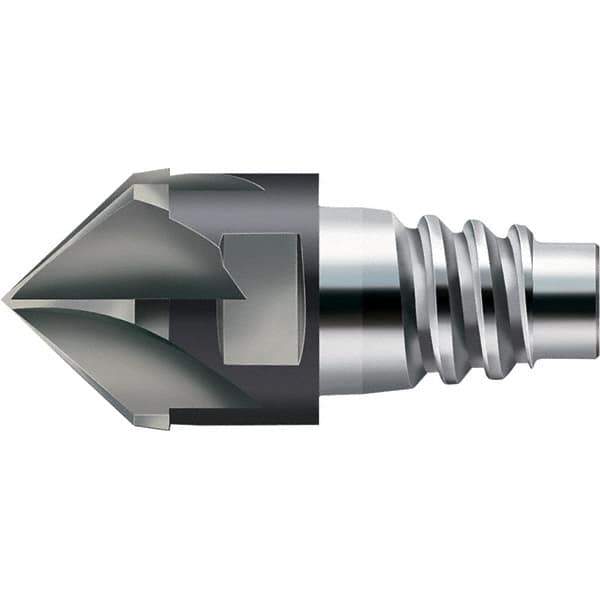

Walter-Prototyp - H3E Carbide Chamfer Milling Tip Insert - TiAlN Finish, 6 Flutes, 12mm Cutting Diam, 6.5mm Depth of Cut, 14.5mm Extension
Item #: 36271849
Brand: Walter-Prototyp
Model #: 5640953
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protostar |
| Milling Tip Style | H3E |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Depth of Cut (mm) | 6.50 |
| Depth of Cut (Decimal Inch) | 0.2559 |
| Number of Flutes | 6 |
| Coating | TiAlN |
| Milling Tip Full Description | Chamfering |
| Coating Process | PVD |
| Extension From Holder (mm) | 14.50 |
| Extension From Holder (Decimal Inch) | 0.5709 |
| Style | H3E58518 |
