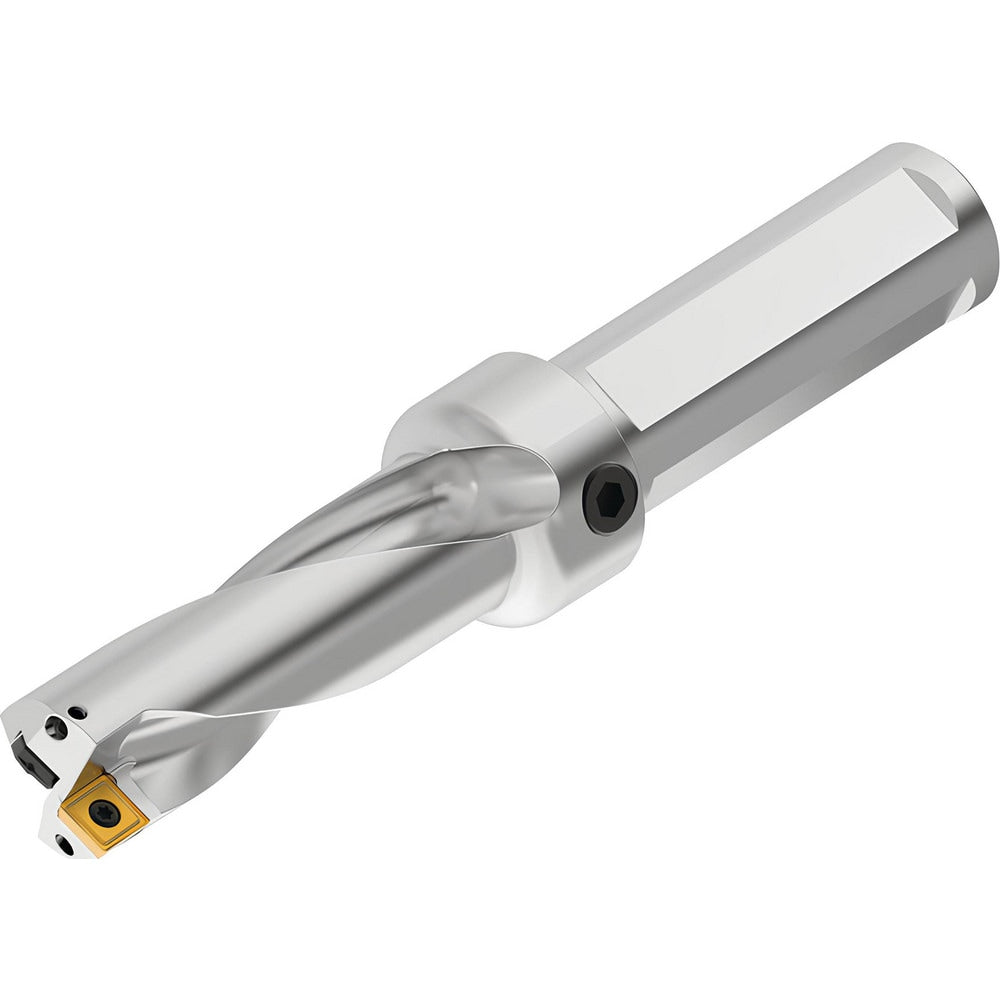

Indexable Insert Drill: DFPR1031R3SSF125, 27.18 mm Max Dia, 78.56 mm Max Depth, 3xD, 31.75 mm Shank Dia
Item #: 04792677
Brand: Kennametal
Model #: 7031279
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 27.18 |
| Maximum Drill Diameter (Decimal Inch) | 1.0700 |
| Maximum Drill Depth (Decimal Inch) | 3.0920 |
| Maximum Drill Depth (mm) | 78.56 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 090305; 100305 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 7.5240 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 3.0920 |
| Flute Length (mm) | 83.56 |
| Body Length | 191.11 |
| Body Length (Decimal Inch) | 4.2740 |
| Shank Length (Decimal Inch) | 3.2500 |
| Shank Length (mm) | 82.55 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3700x0.1180; 0.3900x0.1180 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR090305__O; DFPR100305__I |
| Collar Diameter (Decimal Inch) | 0.9976 |
| Collar Diameter (mm) | 25.34 |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M3-0.5x8T9 |
| Coolant Through | Yes |
