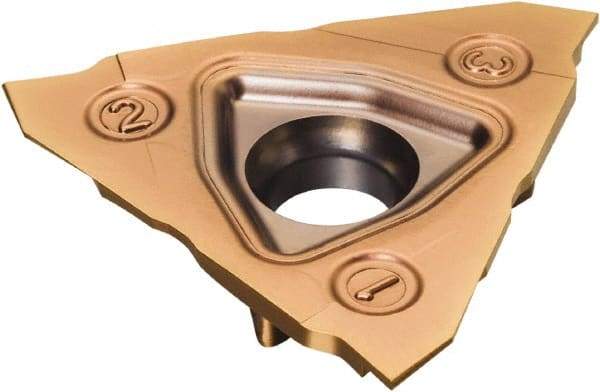

Sandvik Coromant - TN123T3 RS 0.5mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Neutral, 0.25mm Corner Radius, TiAlN Finish
Item #: 36113223
Brand: Sandvik Coromant
Model #: 5736565
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123T3 |
| Insert Size | T |
| Material | Carbide |
| Cutting Width (mm) | 0.50 |
| Cutting Width (Decimal Inch) | 0.0197 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.73 |
| Cutting Height (Decimal Inch) | 0.1469 |
| Insert Seat Size | T |
| Chipbreaker | RS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.25 |
| Corner Radius (Decimal Inch) | 0.0098 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.4130 |
| Series | CoroCut 3 |
| Rake | Positive |
| ISO Number | N123T3-0050-RS 1125 |
| Manufacturers Catalog Number | N123T3-0050-RS 1125 |
| Overall Width (Decimal Inch) | 0.0200 |
| Insert Thickness (Decimal Inch) | 0.1469 |
