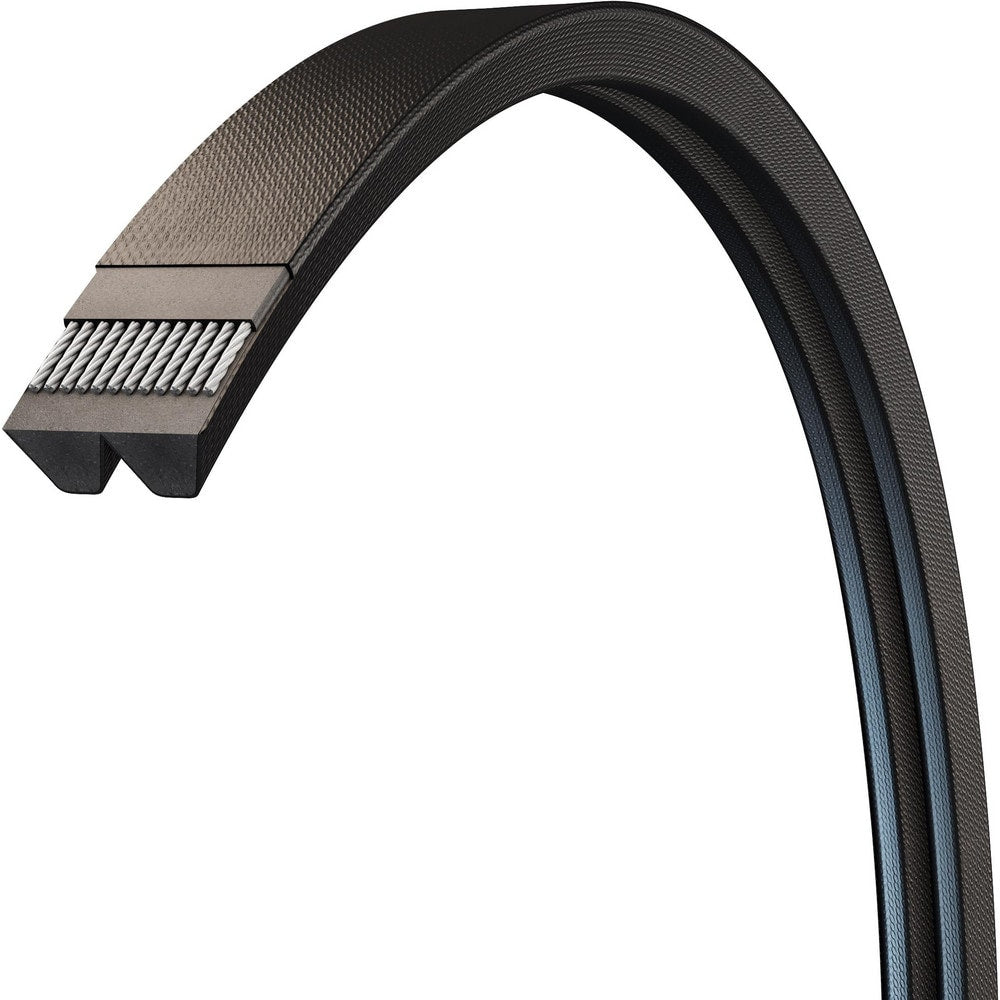

Belts; Belt Type: Banded; Belt Section: 3VX; Belt Width (Inch): 1.5000; Belt Width (mm): 38.10
Item #: 99549776
Brand: Continental ContiTech
Model #: 20040668
Product Specifications
| Belt Type | Banded |
| Belt Section | 3VX |
| Belt Width (Inch) | 1.5000 |
| Belt Width (mm) | 38.10 |
| Resistance Features | Oil-Resistant; Heat Resistant |
| Color | Black |
| Standards | ARPM IP-22 |
| Belt Pitch (Decimal Inch) | 0.4079 |
| Belt Pitch (mm) | 10.36 |
| Outside Length (Decimal Inch) | 58.441 |
| Belt Number | 4/3VX560-A |
| Belt Internal Length (mm) | 1422.40 |
| Belt Internal Length | 56.00 |
| Style | BANDED COGGED WEDGE BELT |
| Minimum Temperature (C) | -40 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3898 |
| Maximum Temperature (F) ( - 0 Decimals) | 200.000 |
| Thickness (mm) | 9.9000 |
| Minimum Temperature (F) | -40 |
| Maximum Temperature (C) | 93 |
| Material | Rubber |
| Outside Length (mm) | 1484.40 |
| UNSPSC Code | 26111800 |
| Country of Origin | Mexico |
