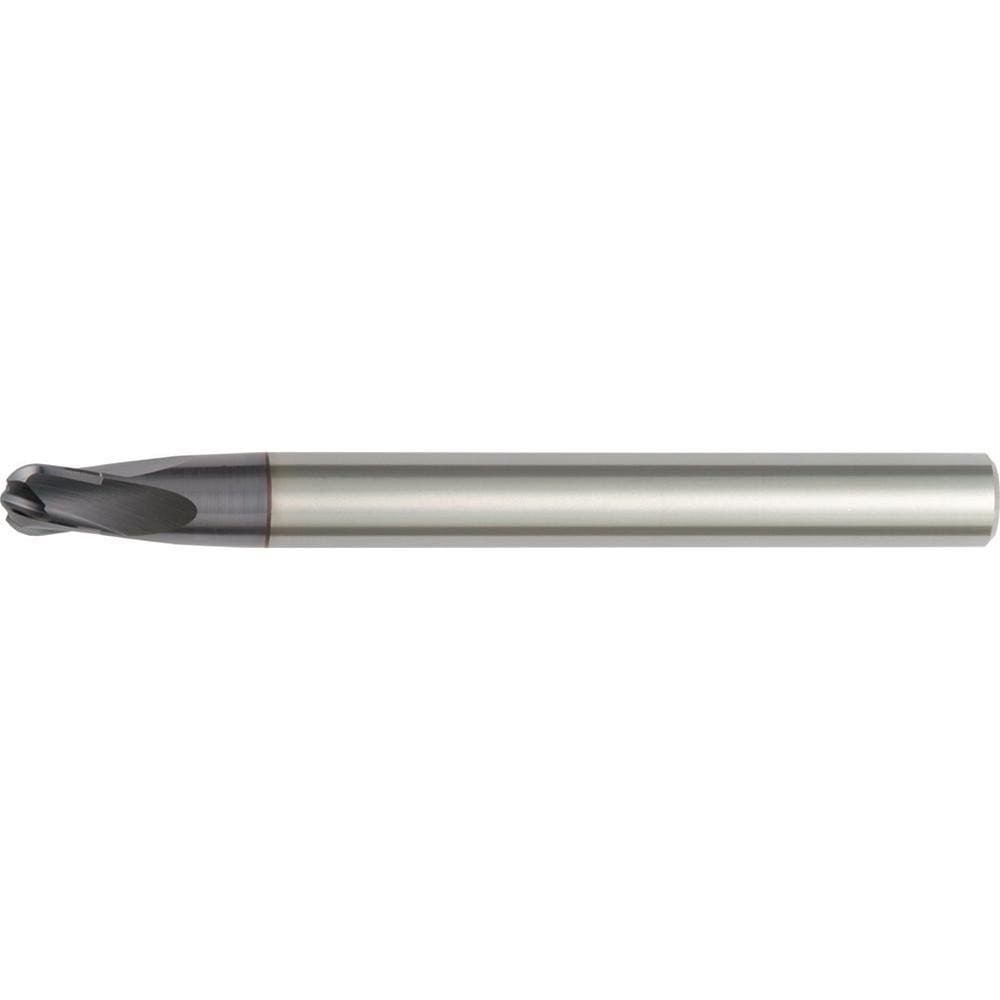

Brand: Widia / Part #: 3058580
Item #: 33983057
Brand: Widia
Model #: 3058580
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 1/4 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| End Type | Single |
| Extended Reach | No |
| Undercutting | No |
| Helix Style | Low |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Nose Radius (Decimal Inch) | 0.1250 |
| Reach Length (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Maximum Helix Angle | 15.00 |
| Minimum Helix Angle | 15.00 |
| Material Grade | AlTiN-MT1 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 7S5F |
| Flute Type | Slow |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
