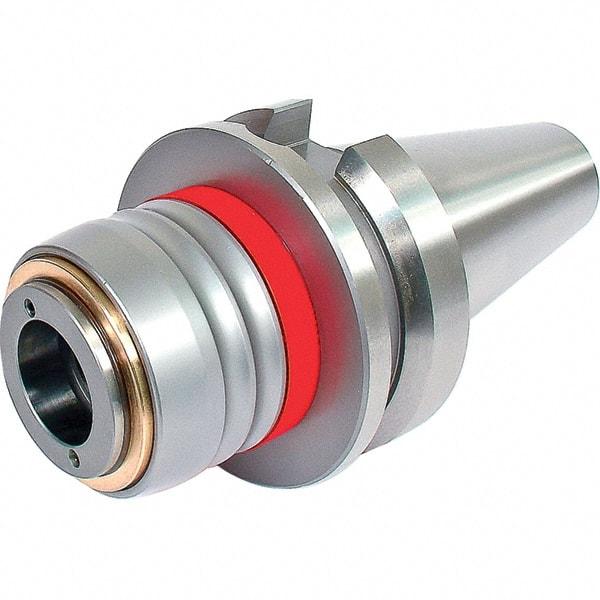

Techniks - CAT40 Taper Shank Rigid Tapping Adapter - 5/16 to 11/16" Tap Capacity, 3.54" Projection, Quick Change
Item #: 36007193
Brand: Techniks
Model #: 23600-40CAT
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Minimum Tap Capacity (Inch) | 5/16 |
| Maximum Tap Capacity (Inch) | 11/16 |
| Projection (Decimal Inch) | 3.5400 |
| Quick Change | Yes |
| Minimum Collet Capacity (mm) | M4 |
| Minimum Collet Capacity (Inch) | 1/8; #6 |
| Maximum Collet Capacity (Inch) | 11/16 |
| Maximum Collet Capacity (mm) | M16 |
| Overall Length (Decimal Inch) | 6.2270 |
