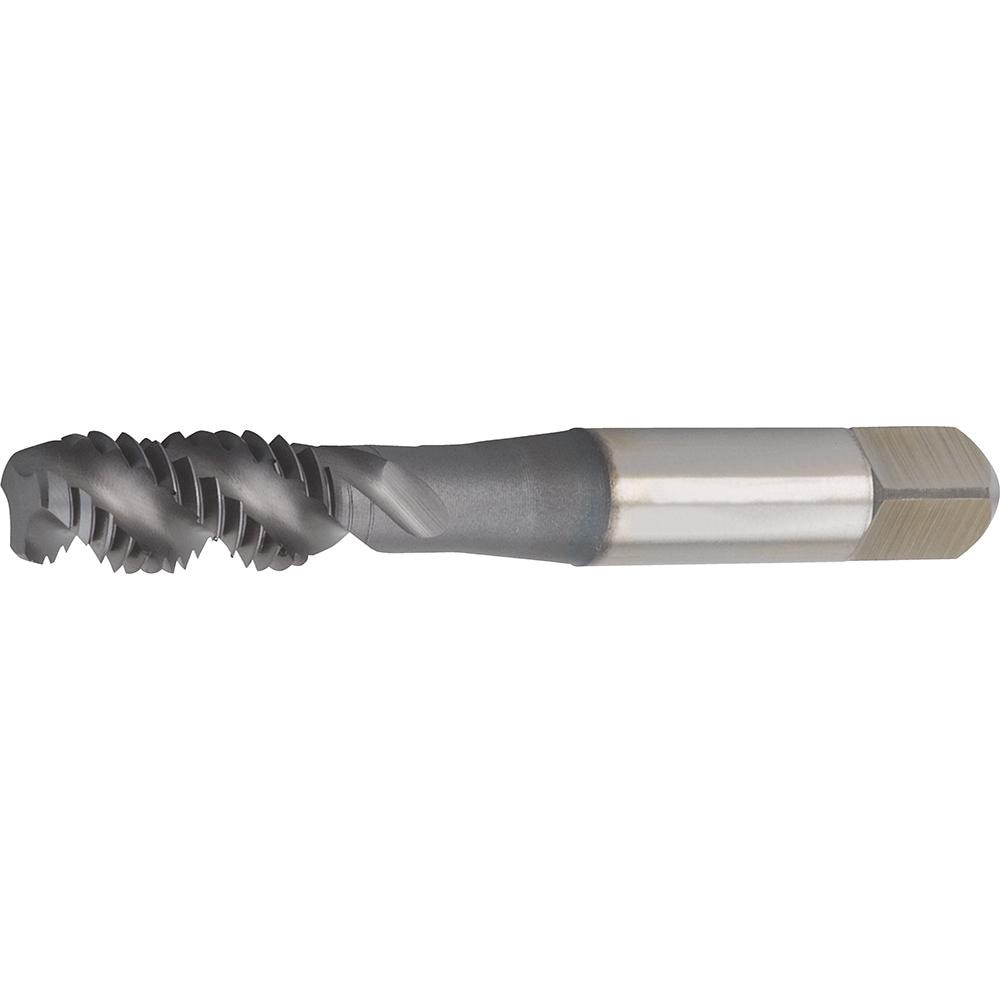

Brand: Widia / Part #: 6140484
Item #: 97308092
Brand: Widia
Model #: 6140484
Product Specifications
| Thread Size (Inch) | 1-1/8-8 |
| Chamfer | Modified Bottoming |
| Thread Limit | H6 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.7100 |
| Overall Length (Decimal Inch) | 5.4400 |
| Thread Depth (Decimal Inch) | 2.5600 |
| Thread Pitch (Decimal Inch) | 0.1250 |
| Thread Standard | UN |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.8960 |
| Square Size (Decimal Inch) | 0.6690 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
