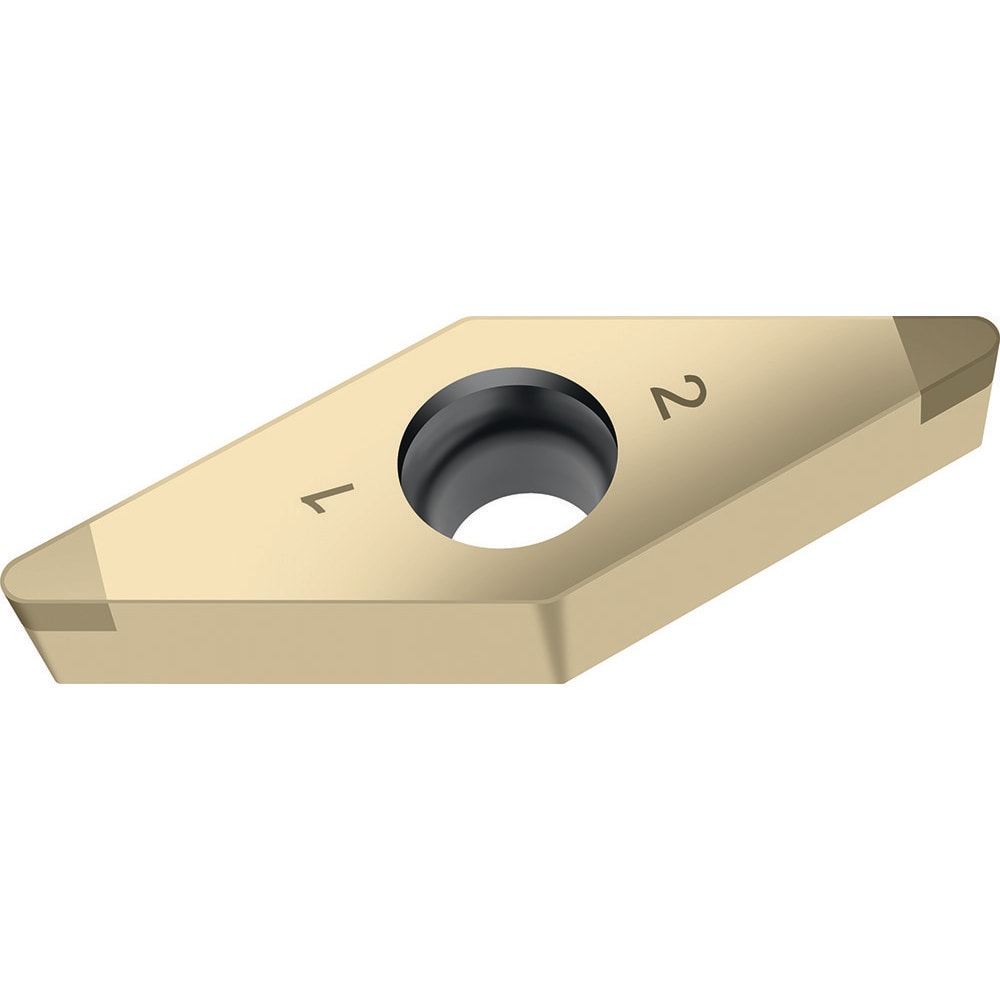

Turning Insert: VBGW332TM2 WBH20C, CBN
Item #: 91899625
Brand: Walter
Model #: 8306537
Product Specifications
| ANSI Insert Code | VBGW332 |
| ISO Insert Code | VBGW160408 |
| Relief Angle | 5.000 |
| Insert Style | VBGW |
| Corner Radius (mm) | 0.80 |
| Included Angle | 35.00 |
| Manufacturer Grade | WBH20C |
| Coating/Finish | CBN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | VBGW |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | CBN |
| Insert Shape | Rhombic 35° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Insert Holding Method | Screw |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Length (mm) | 16.61 |
| Manufacturers Catalog Number | VBGW160408TM-2 WBH20C |
| Chip Breaker | TM |
| Width (mm - 2 Decimals) | 9.53 |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| Country of Origin | Germany |
