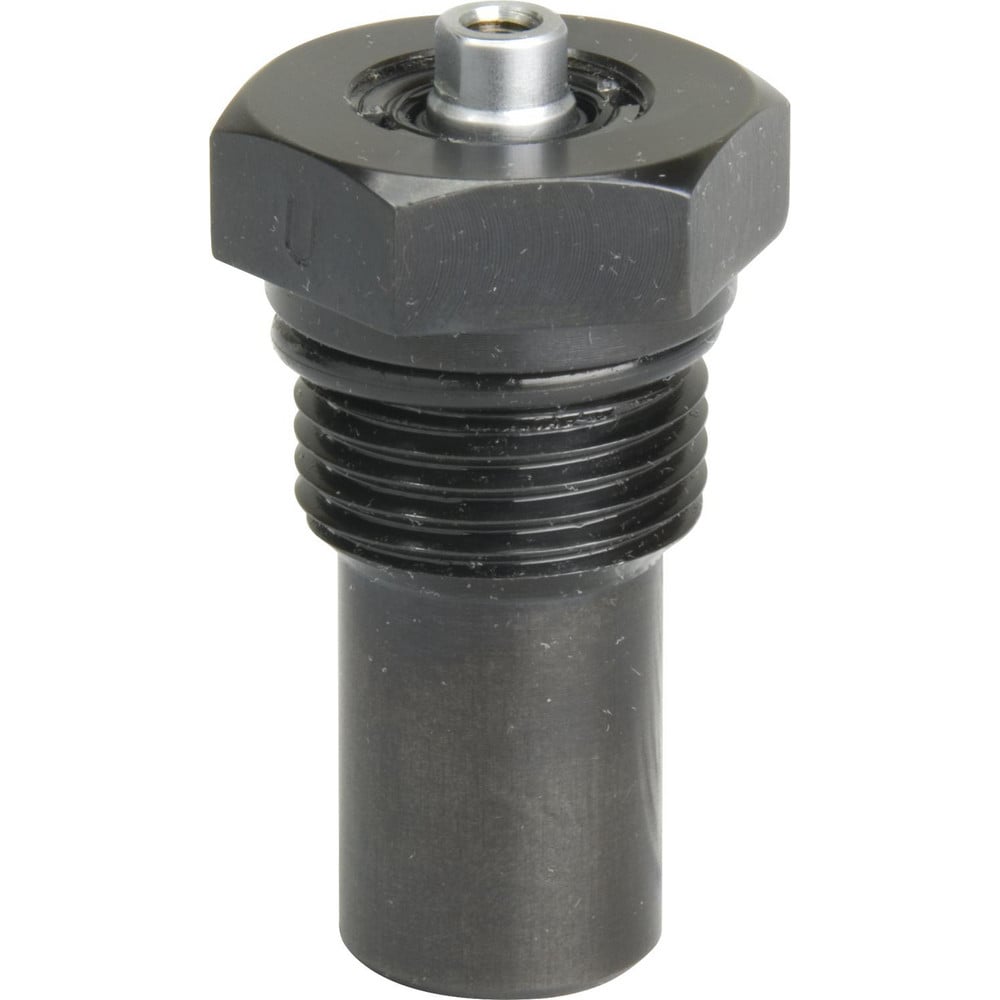

Compact Hydraulic Cylinders; Actuation: Single Acting; Rod Diameter (mm): 7.95; Body Material: Steel; Stroke Length (Decimal Inch): 0.5100; Maximum Working Pressure (Psi
Item #: 09775347
Brand: Enerpac
Model #: CSM5131
Product Specifications
| Actuation | Single Acting |
| Rod Diameter (mm) | 7.95 |
| Body Material | Steel |
| Stroke Length (Decimal Inch) | 0.5100 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000.000 |
| Port Size | M8 |
| Mount Type | Manifold |
| Bore Size (mm) | 14.33 |
| Retracted Length (Decimal Inch) | 2.07 |
| Extended Length (Inch) | 2.5800 |
| Load Capacity (Lb.) | 1190 |
| UNSPSC Code | 27121602 |
