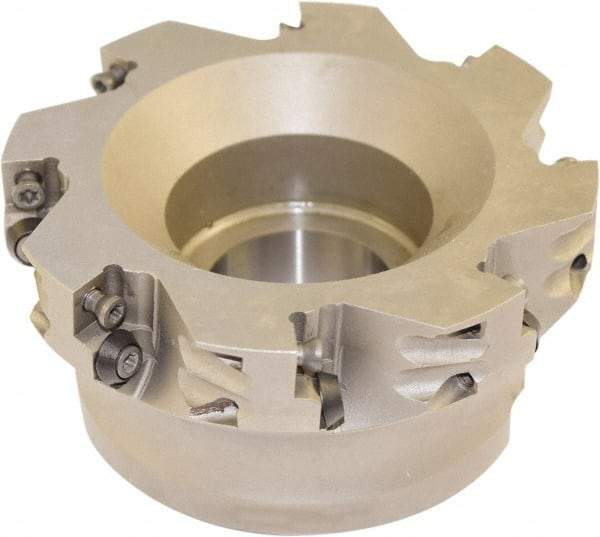

Millstar - 8 Inserts, 4" Cutter Diam, 0.06" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/4" Arbor Hole Diam, 1/2" Keyway Width, 1.968" High, HFA Toolholder, HFCI-1204 Inserts, Series HFA
Item #: 35796135
Brand: Millstar
Model #: HFA40008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Cutting Diameter (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 1.9680 |
| Series | HFA |
| Cutter Style | HFA |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | HFCI-1204 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.5000 |
