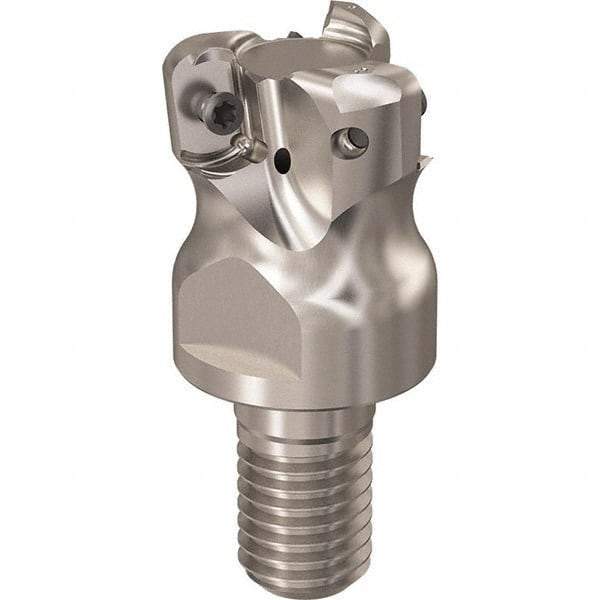

Seco - R217.21.RE 12mm Threaded Shank Milling Tip Insert Holder & Shank - 1.181102" Projection, 1" Neck Diam, M12 Neck Thread, 25mm Nose Diam, 30mm OAL, Tool Steel Tool Holder
Item #: 35795996
Brand: Seco
Model #: 09978
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | R217.21.RE |
| Shank Type | Threaded |
| Shank Taper Size | None |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Projection (mm) | 30.00 |
| Projection (Inch) | 1.1811 |
| Projection (Decimal Inch) | 1.1811 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Neck Thread Size | M12 |
| Nose Diameter (mm) | 25.00 |
| Nose Diameter (Decimal Inch) | 0.9843 |
| Toolholder Material | Tool Steel |
| Overall Length (mm) | 30.00 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.1811 |
| Thread Size Connection to Shank | M12 |
