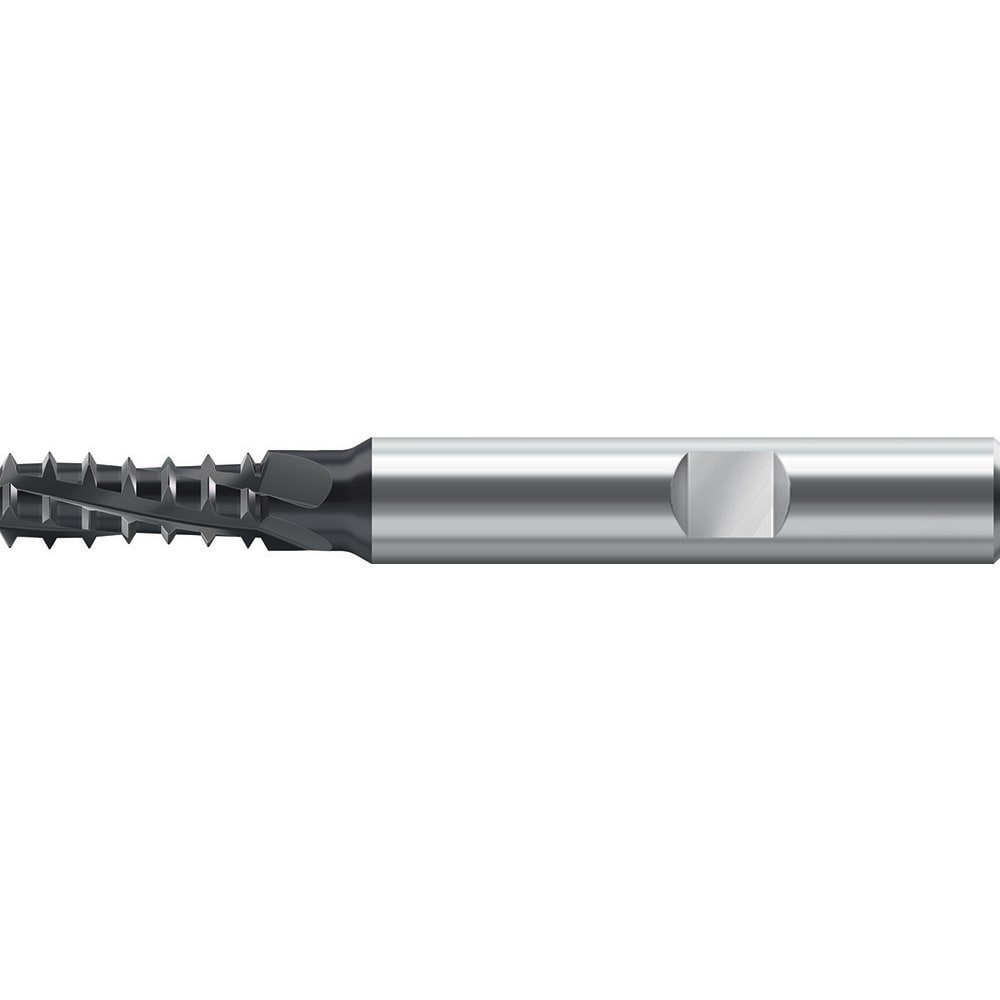

Helical Flute Thread Mill: M20x2.5, Internal, 5 Flute, 18.0000 mm Shank Dia, Solid Carbide
Item #: 56031479
Brand: Walter-Prototyp
Model #: 8117601
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M20x2.5 |
| Thread Type | Internal |
| Shank Diameter (mm) | 18.0000 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Cutting Diameter (mm) | 16.40 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.6457 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5748 |
| Length of Cut (mm) | 40.0000 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.000 |
| Overall Length (mm) | 105.0000 |
| Overall Length (Decimal Inch) | 4.1339 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC620-M-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M20x2.5 |
| Thread Type | Internal |
| Shank Diameter (mm) | 18.0000 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Cutting Diameter (mm) | 16.40 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.6457 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5748 |
| Length of Cut (mm) | 40.0000 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.000 |
| Overall Length (mm) | 105.0000 |
| Overall Length (Decimal Inch) | 4.1339 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC620-M-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
| MSC Part # | 56031479 |
| Mfr Part # | 8117601 |
| Country of Origin Country of Origin is subject to change | Germany |
