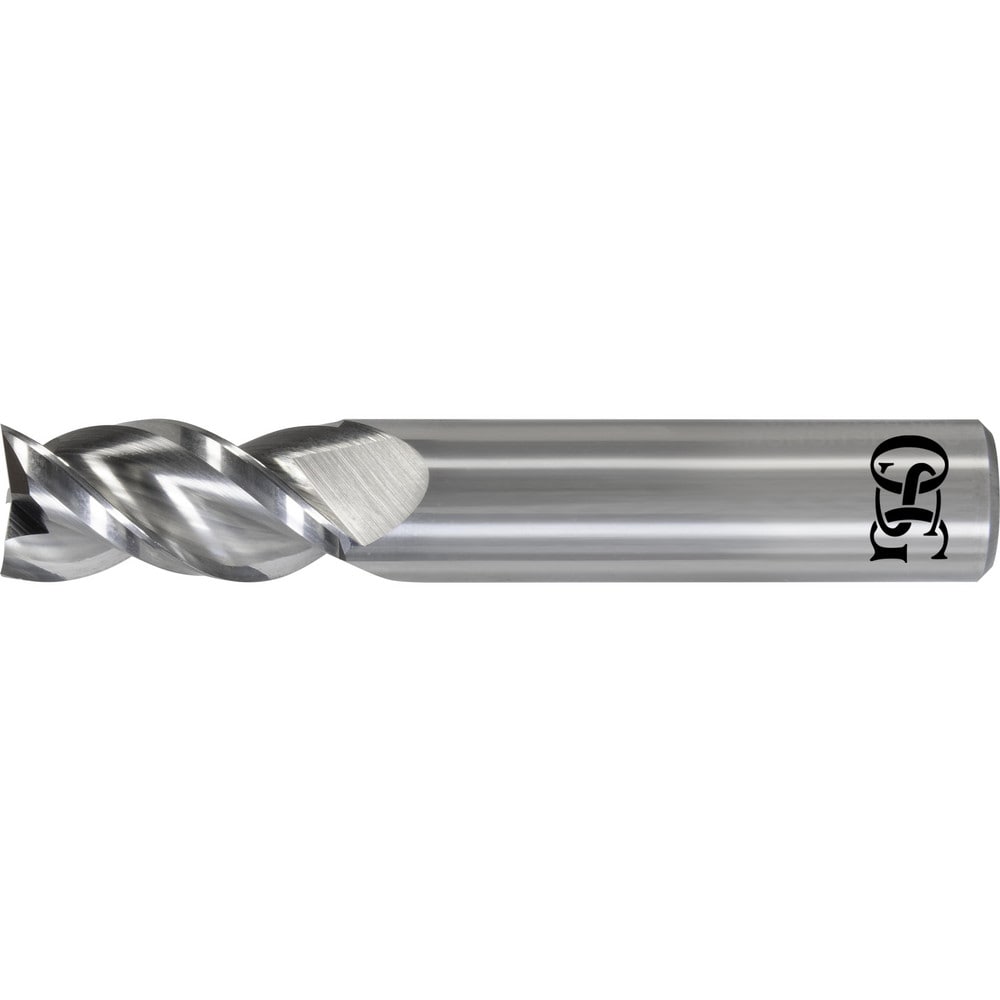

Square End Mill: 1/4" Dia, 5/8" LOC, 3 Flute, Solid Carbide
Item #: 48667513
Brand: OSG
Model #: VGM3-0009
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 40-43 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | Yes |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Length Type | Regular |
| Mill Diameter Tolerance | +0 / -0.0004 |
| Shank Diameter Tolerance | h6 |
| Series | VGM3-AL |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
