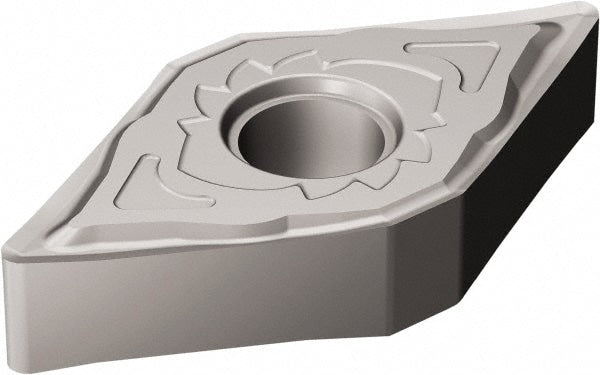

Turning Insert: DNGG43.50-SGF H13A, Carbide
Item #: 35015627
Brand: Sandvik Coromant
Model #: 6851281
Product Specifications
| ANSI Insert Code | DNGG43.50 |
| ISO Insert Code | DNGG150402 |
| Relief Angle | 0 |
| Insert Style | DNGG |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Included Angle | 55 |
| Manufacturer Grade | H13A |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T-Max P |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (mm) | 13.45 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Primary Workpiece Material Code | P; S; K; N |
| Iso Code | DNGG 15 04 02-SGF H13A |
| Chip Breaker | SGF |
| Cutting Edge Style | Sharp |
| ANSI Size Code | 43.50 |
| ISO Size Code | 150402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 43.5 |
