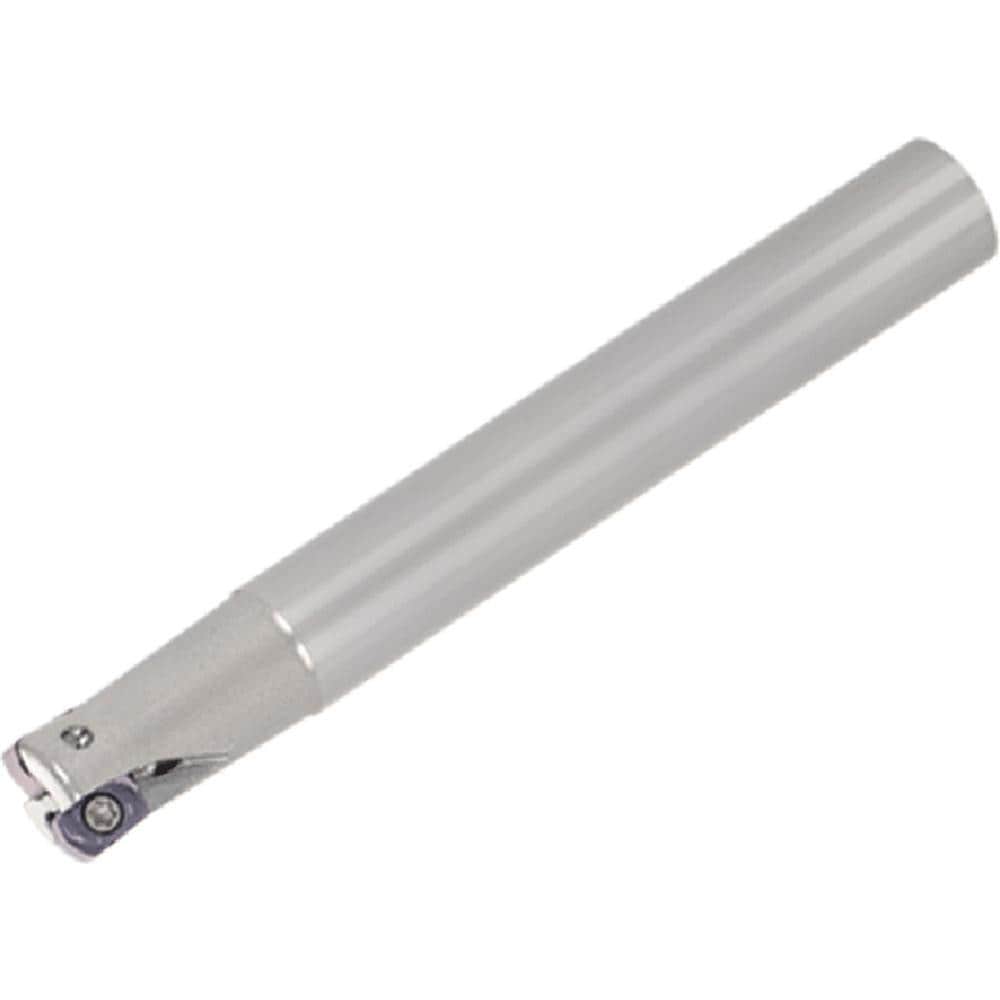

Indexable High-Feed End Mill: 25 mm Cut Dia, 25 mm Cylindrical Shank
Item #: 82905506
Brand: Tungaloy
Model #: 6837293
Product Specifications
| Minimum Cutting Diameter (mm) | 20.80 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 0.50 |
| Toolholder Style | EXN |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Maximum Ramping Angle | 0.66 |
| Compatible Insert Style | LNMU |
| Compatible Insert Size Code | 02 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Overall Length (Decimal Inch) | 180.0000 |
| Overall Length (Inch) | 180 |
| Overall Length (mm) | 180.00 |
| Series | EXN-02 |
| Flute Type | Straight |
| Head Length (mm) | 100.00 |
| Functional Length (mm) | 180.00 |
| Tool Application | Facing; Milling |
| Number Of Flutes | 6 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
