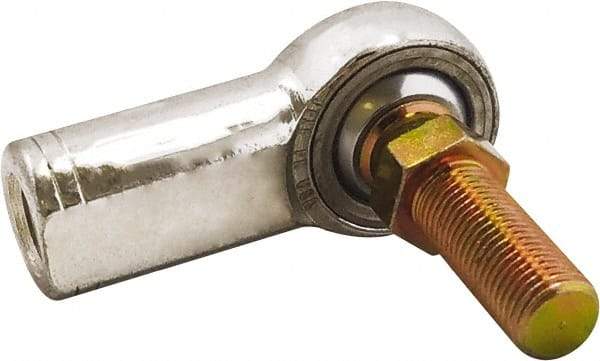

Made in USA - 1/4" ID, 3/4" Max OD, 6,195 Lb Max Static Cap, Female Spherical Rod End with Stud - 1/4-28 LH, 0.687" Shank Diam, 3/4" Shank Length, Alloy Steel with Steel Raceway
Item #: 35511047
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.2500 |
| Inside Diameter (Inch) | 1/4 |
| Style | Female Rod End w/ Stud |
| Maximum Outside Diameter (Decimal Inch) | 0.7500 |
| Maximum Outside Diameter (Inch) | 3/4 |
| Maximum Static Load Capacity (Pounds) | 6195.0 |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Thread Size | 1/4-28 |
| Material | Alloy Steel |
| Shank Diameter (Decimal Inch) | 0.6870 |
| Raceway Material | Steel |
| Shank Length (Decimal Inch) | 0.7500 |
| Thread Direction | Left Hand |
