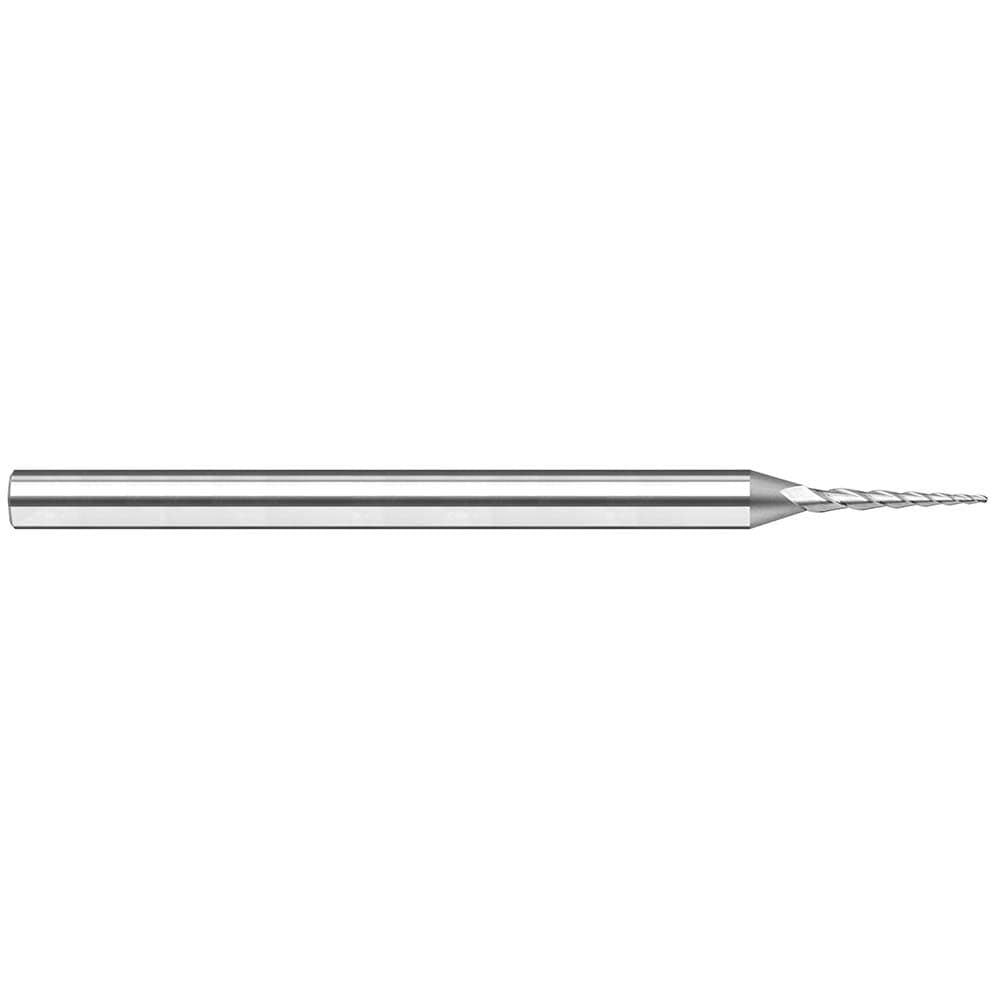

Tapered End Mill: 5 deg Angle per Side, 0.0300" Small Dia, 0.3000" LOC, 4 Flute, Tapered End
Item #: 93271674
Brand: Harvey Tool
Model #: 723530
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0300 |
| Taper Angle Per Side | 5.00 |
| End Mill Material | Solid Carbide |
| End Shape | Tapered |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Nose Radius (Inch) | 1/64 |
| Small End Diameter (Decimal Inch) | 0.0300 |
| Helix Angle | 30 |
| Series | Miniature End Mills - Tapered - Ball |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3000 |
| Coolant Through | No |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 4 |
| Included Angle Degree | 10 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
