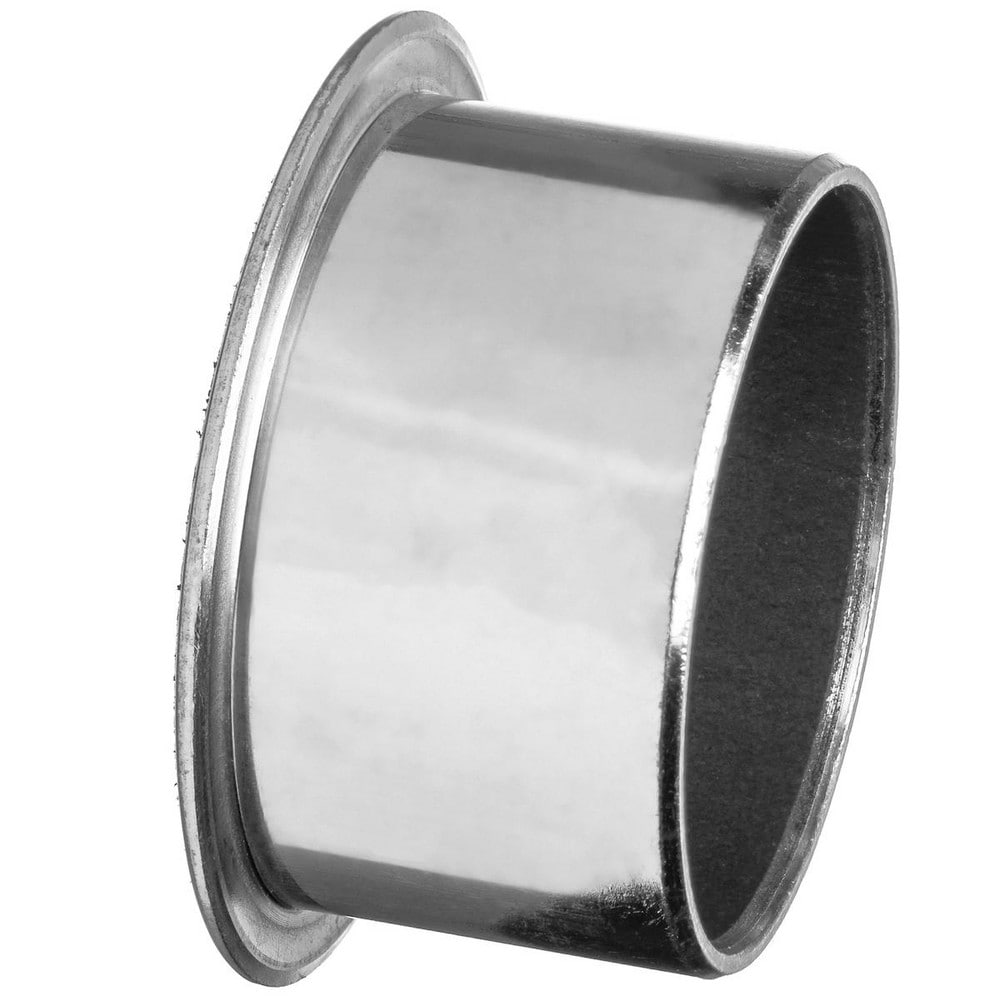

Sleeve Bearings; Bearing Type: Flanged; Outside Diameter (Inch): 45/64; Outside Diameter (Decimal Inch - 4 Decimals): 0.7031; Inside Diameter (Inch): 5/8; Inside Diameter (Decimal Inch): 0.6250
Item #: 76820323
Brand: USA Industrials
Model #: ZUSAB-PB-403
Product Specifications
| Bearing Type | Flanged |
| Outside Diameter (Inch) | 45/64 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7031 |
| Inside Diameter (Inch) | 5/8 |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Flange Outside Diamete (mm) | 24.00 |
| Material | Steel |
| Overall Length (Inch) | 21/32 |
| Overall Length (Decimal Inch) | 0.6563 |
| Static Load Capacity | 80719.86 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 18.0180 |
| Housing Bore Limits Mininum | 18.0000 |
| Flange Thickness (mm) | 1.00 |
| Inside Diameter (mm) | 16.0000 |
| Overall Length (mm) | 17 |
| UNSPSC Code | 31171501 |
| Country of Origin | United Kingdom |
