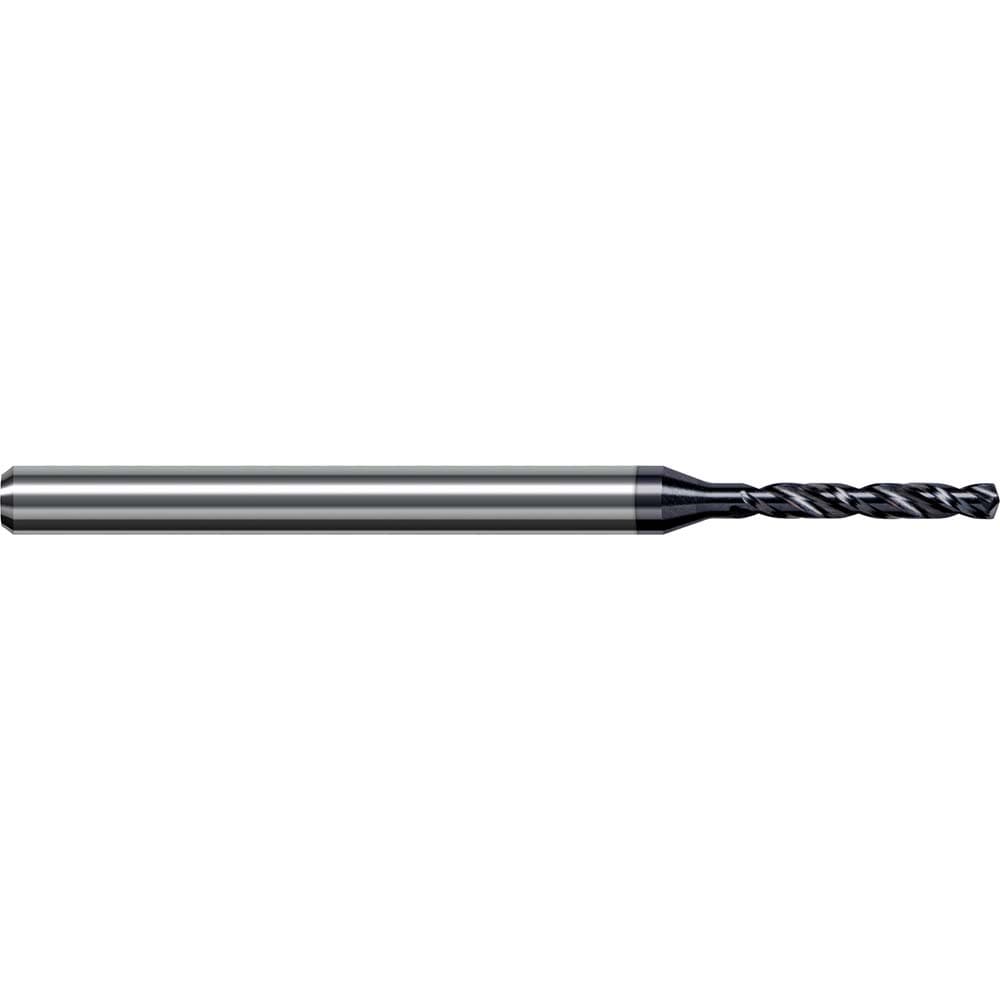

Micro Drill Bit: 0.25 mm Dia, (0.0100"), 140 deg, Solid Carbide
Item #: 93281814
Brand: Harvey Tool
Model #: BGN0100-C6
Product Specifications
| Drill Bit Size (mm) | 0.25 |
| Drill Bit Size (Decimal Inch) | 0.0100 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.0669 |
| Flute Length (mm) | 1.70 |
| Coating/Finish | AlTiN Nano |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (Decimal Inch) | 0.0669 |
| Number Of Flutes | 2 |
| Series | Miniature High Performance Drills - Hardened Steels - Metric |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Tool Application | Through Hole Drilling |
| Shank Diameter (mm) | 3.0000 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
