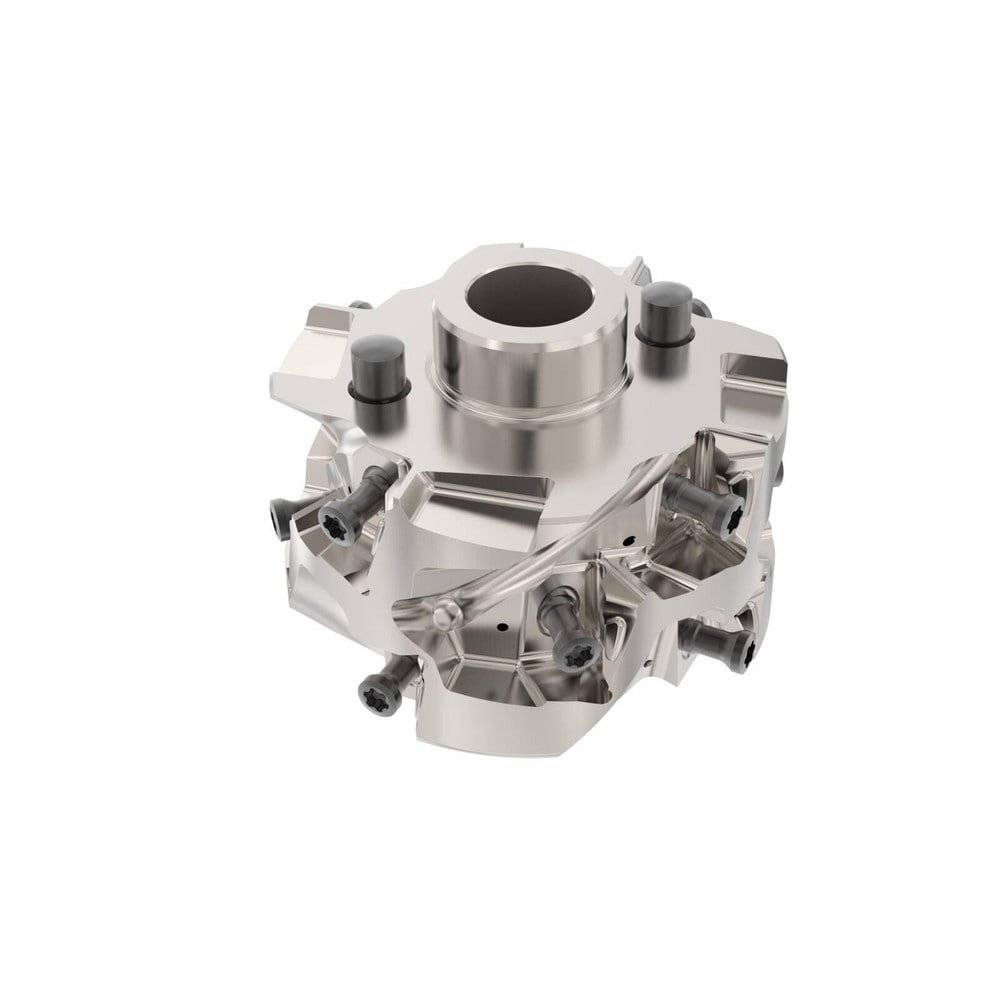

Indexable Square-Shoulder Face Mill: R220.94RE063036LO12.4A, 0.0000" Arbor Hole Dia
Item #: 87667218
Brand: Seco
Model #: 10215199
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 35.79 |
| Arbor Hole Diameter (Decimal Inch) | 0.0000 |
| Compatible Insert Size Code | 1207.. |
| Cutter Style | R220.94 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | R220.94 |
| Maximum Ramping Angle | 0 |
| Maximum Body Diameter (mm) | 63.00 |
| Overall Height (Mm - 5 Decimals) | 36.00000 |
| Hub Diameter (mm) | 63.000 |
| Pitch Type | Close |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Number of Adjustable Pockets | 0 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | LOEX1207 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 10215199 |
| Maximum Insert Radius (Decimal Inch) | 0.2480 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 4 |
| Country of Origin | France |
