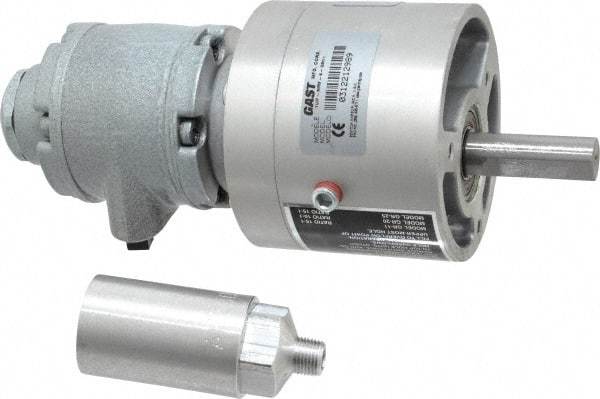

Gast - 1/3 hp Reversible Face Air Actuated Motor - 15:1 Gear Ratio, 400 Max RPM, 7.31" OAL, 1/2" Shaft Diam
Item #: 35364512
Brand: Gast
Model #: 1UP-NRV-4-GR11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Gear Ratio | 15:1 |
| Horsepower | 1/3 |
| Maximum RPM | 400 |
| Minimum RPM | 0.00 |
| Shaft Diameter (Inch) | 1/2 |
| Shaft Rotation | Reversible |
| Maximum Working Pressure (psi) | 80 |
| Torque (In/Lb) | 71.00 |
| Diameter (Decimal Inch) | 2.9300 |
| Center Line | 2.500 |
| Mount | Face |
| Height (Inch) | 3.75 |
| Maximum Consumption | 21 |
| Overall Length (Decimal Inch) | 7.3100 |
| PSC Code | 6105 |
