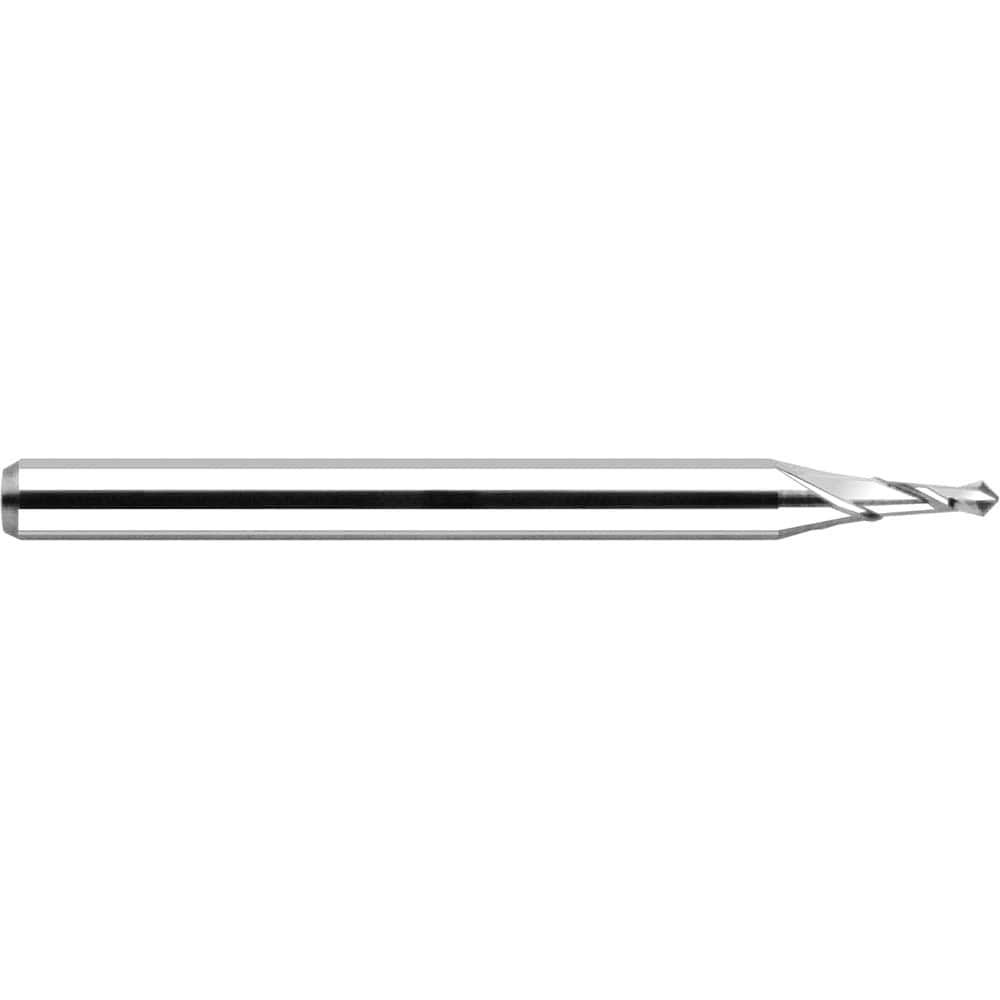

140° 1/16″ Diam 1-1/2″ OAL 2-Flute Solid Carbide Spotting Drill Bright/Uncoated, 0.186″ Flute Length, 1/8″ Shank Diam
Item #: 35343789
Brand: Harvey Tool
Model #: 39862
Product Specifications
| Drill Point Angle | 140 |
| Cutting Diameter (Inch) | 1/16 |
| Cutting Diameter (Decimal Inch) | 0.0625 |
| Overall Length (Inch) | 1-1/2 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Length (Decimal Inch) | 0.1860 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Point Type | Harvey Type I |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thickness | 0.0050 |
