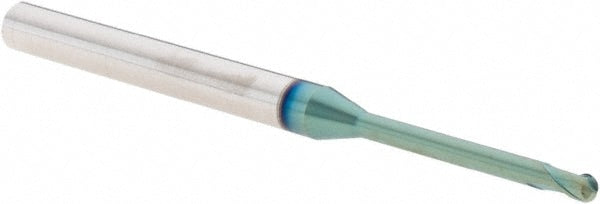

Ball End Mill: 2.00 mm Dia, 1.60 mm LOC, 2 Flute, Solid Carbide
Item #: 53141677
Brand: YG-1
Model #: G8A46910
Product Specifications
| Mill Diameter (mm) | 2.00 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 1.60 |
| Coating/Finish | BLUE |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 55.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.0500 - 0.1000 |
| Length Type | Extended |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 4.00 |
| Neck Diameter (mm) | 1.95 |
| Nose Radius (mm) | 1.00 |
| Neck Length (mm) | 18.40 |
| Reach Length (mm) | 20.00 |
| Mill Diameter Tolerance | +0.000/-0.012 mm |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | P; H |
| Material Grade | Nanograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | G8A46 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Manufacturers Catalog Number | G8A46910 |
| System Of Measurement | Metric |
