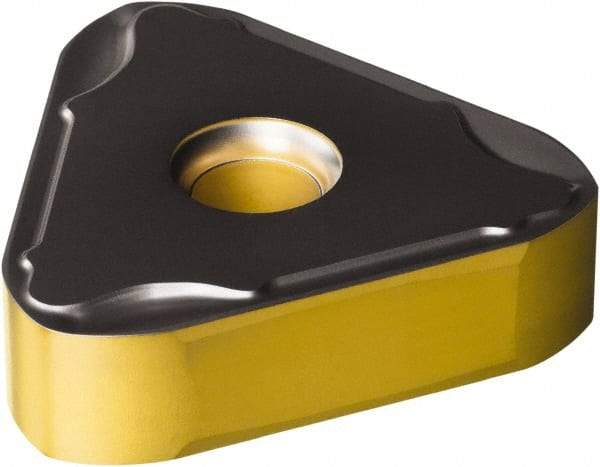

Sandvik Coromant - TNMX4910 MF Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 28.57mm Inscr Circle, 10mm Thick, 12mm Corner Radius
Item #: 35009174
Brand: Sandvik Coromant
Model #: 6533041
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMX |
| Insert Size | 4910 |
| Material | Carbide |
| Inscribed Circle (mm) | 28.57 |
| Inscribed Circle (Decimal Inch) | 1.1250 |
| Thickness (Decimal Inch) | 0.3937 |
| Thickness (mm) | 10.00 |
| Corner Radius (mm) | 12 |
| Corner Radius (Decimal Inch) | 0.4724 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MF |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | TNMX 49 10 51-MF 4325 |
| Lead Angle | 120.000 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Not applicable |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Rounded |
| Multi Use Application | peeling;peeling |
| Shape | Triangle |
