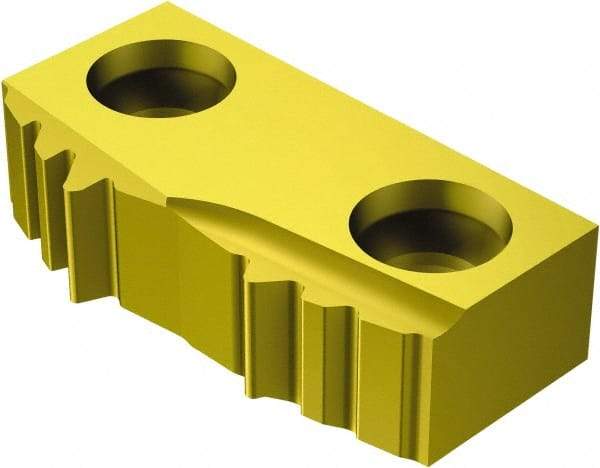

Sandvik Coromant - 16624 A Grade 4125, External API Round Threading Insert - 10 TPI Ext Pitch, Right Hand Insert, TiAlN+TiN Finish, Carbide
Item #: 34998583
Brand: Sandvik Coromant
Model #: 5742298
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multi-layered coating designed to increase tool life. It is extremely heat-resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 166 |
| Insert Size | 24 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | API Round |
| Manufacturer's Grade | 4125 |
| External Pitch/TPI | 10 TPI |
| Coating | TiAlN+TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | R166.39G-24RD03-100 4125 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Series | T-Max Twin-Lock |
| Chipbreaker | A |
| Maximum Tip to Top of Insert (Decimal Inch) | 0.2500 |
| Tip to Top of Insert (mm) | 6.35 |
| Tip to Top of Insert (Decimal Inch) | 0.2500 |
| Blade Height (mm) | 6.35 |
| Blade Height (Decimal Inch) | 0.2500 |
