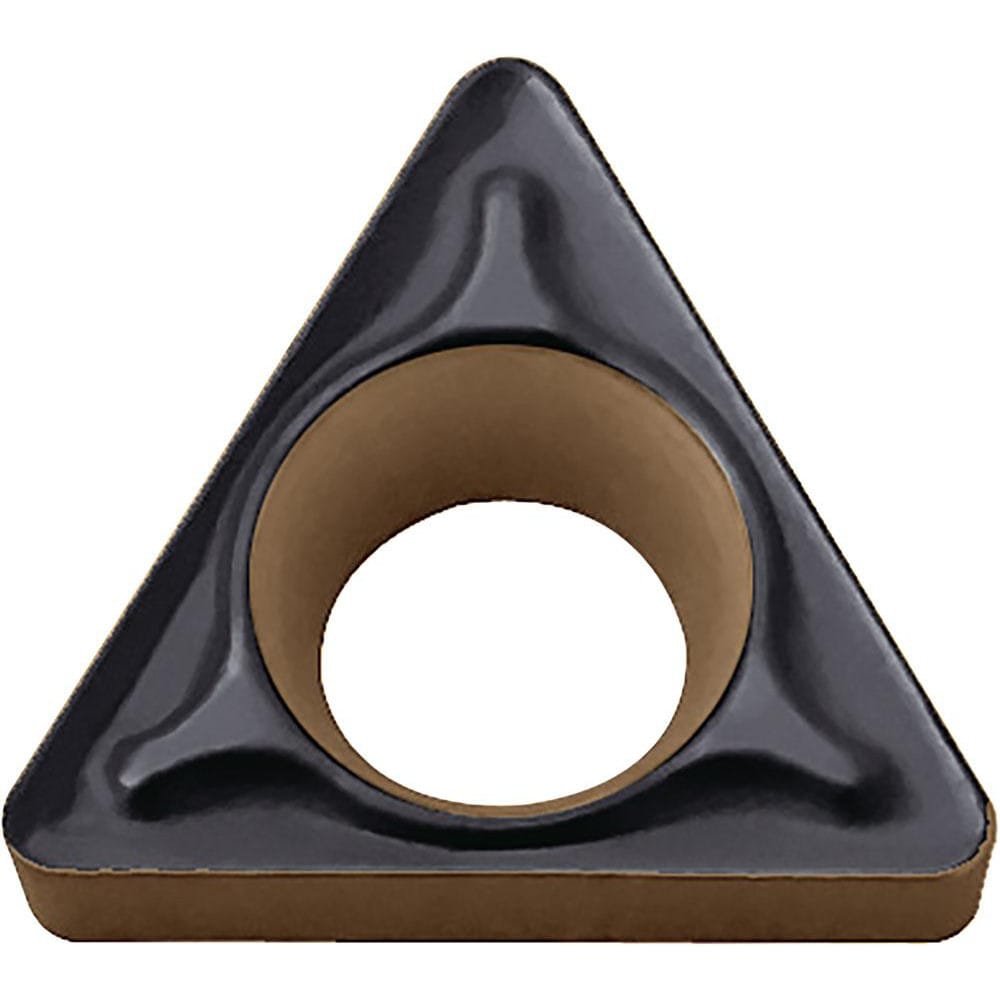

Boring Inserts; Insert Style: TBMT; Insert Size Code: 12105; Insert Material: Carbide; Manufacturer Grade: CA125P; Inscribed Circle (Inch): 5/32
Item #: 72301260
Brand: Kyocera
Model #: TMK00389
Product Specifications
| Insert Style | TBMT |
| Insert Size Code | 12105 |
| Insert Material | Carbide |
| Manufacturer Grade | CA125P |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.3000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Relief Angle | 5.000 |
| Rake | Positive |
| Chipbreaker | DP |
| Series | ISO Insert |
| Coating Process | CVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | TBMT060102DP |
| Manufacturers Catalog Number | TBMT12105DPCA125P |
| Coating/Finish | TiCN/Al2O3/TiN |
| UNSPSC Code | 23242107 |
| Insert Style | TBMT |
| Insert Size Code | 12105 |
| Insert Material | Carbide |
| Manufacturer Grade | CA125P |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.3000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Relief Angle | 5.000 |
| Rake | Positive |
| Chipbreaker | DP |
| Series | ISO Insert |
| Coating Process | CVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | TBMT060102DP |
| Manufacturers Catalog Number | TBMT12105DPCA125P |
| Coating/Finish | TiCN/Al2O3/TiN |
| UNSPSC Code | 23242107 |
| MSC Part # | 72301260 |
| Mfr Part # | TMK00389 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
