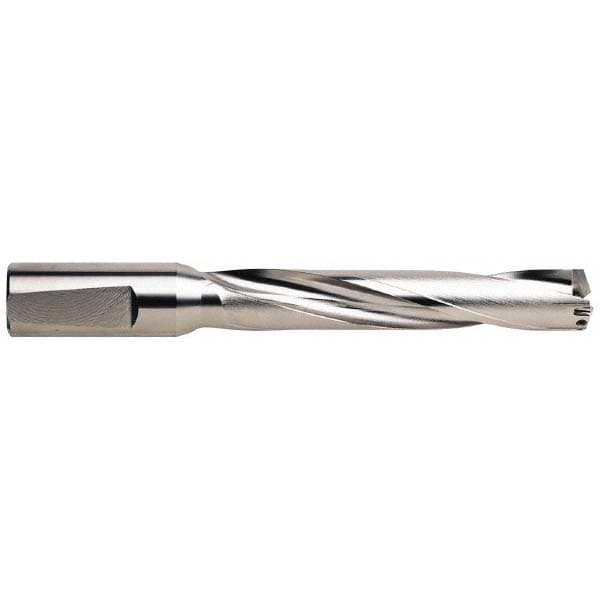

Replaceable-Tip Drill: 18 to 19.05 mm Dia, 100 mm Max Depth
Item #: 72305956
Brand: Guhring
Model #: 9052430190050
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 19.05 |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 100.00 |
| Maximum Drill Depth (Decimal Inch) | 3.9370 |
| Shank Type | Whistle Notch |
| Insert Seat Size | 1.1 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |
| Compatible Insert Style | RT 800 WP |
| Overall Length (mm) | 178 |
| Series | 5243 |
| Flute Length (mm) | 124.00 |
| Shank Length (mm) | 50.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 19.05 |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 100.00 |
| Maximum Drill Depth (Decimal Inch) | 3.9370 |
| Shank Type | Whistle Notch |
| Insert Seat Size | 1.1 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |
| Compatible Insert Style | RT 800 WP |
| Overall Length (mm) | 178 |
| Series | 5243 |
| Flute Length (mm) | 124.00 |
| Shank Length (mm) | 50.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| MSC Part # | 72305956 |
| Mfr Part # | 9052430190050 |
| Country of Origin Country of Origin is subject to change | Germany |
