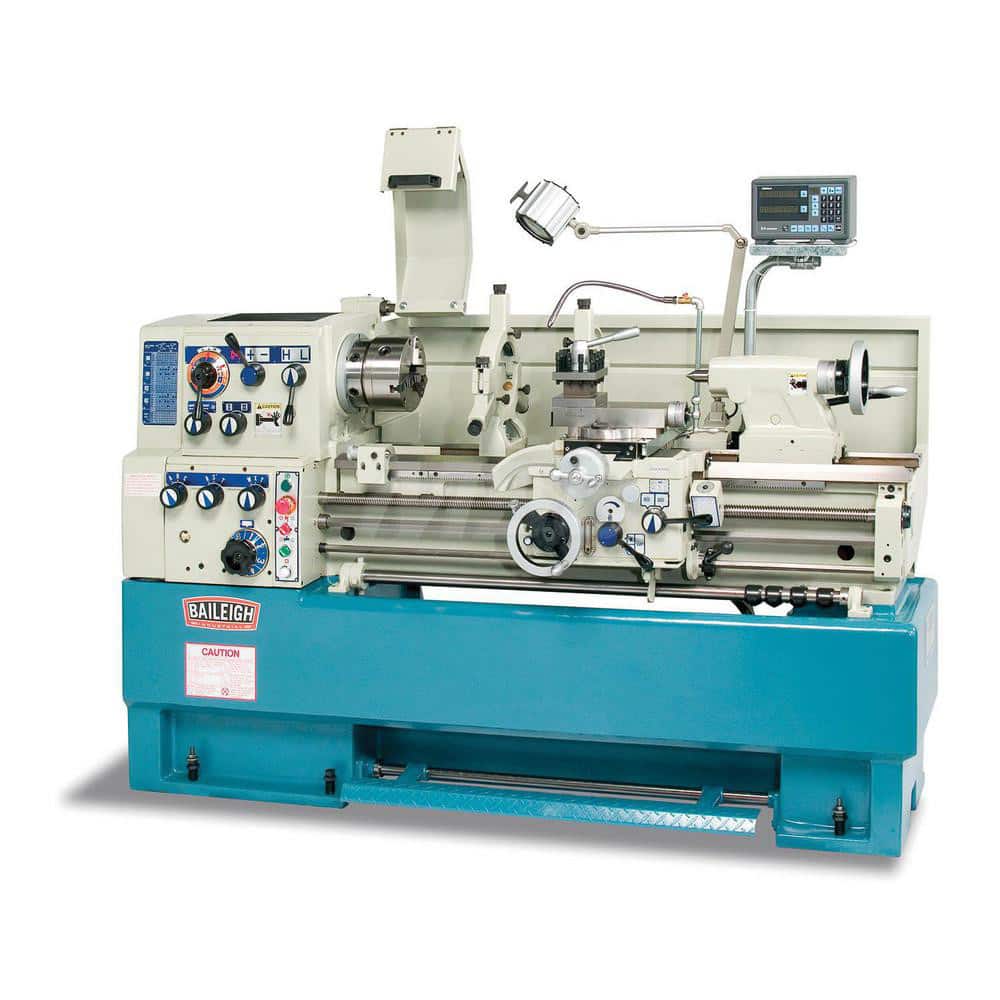

Toolroom Lathe: 16″ Swing, 40″, Variable 2-1/16″ Spindle Bore Dia, 6MT, 30 to 2,000 RPM, 3 Phase, 220V, 7.5 hp
Item #: 33861956
Brand: Baileigh
Model #: 1006140
Product Specifications
| Horsepower | 7.50 |
| Phase | 3 |
| Spindle Speed Control | Variable |
| Bed Width (Inch) | 11.8100 |
| Distance Between Centers (Inch) | 40 |
| Gap Length (Decimal Inch) | 6.1250 |
| Cross Slide Travel (Inch) | 9 |
| Cross Slide Travel (Decimal Inch) | 9.0000 |
| Swing (Inch) | 16 |
| Spindle Bore Diameter (Inch) | 2-1/16 |
| Minimum Spindle Speed | 30 |
| Spindle Nose Designation | 6MT |
| Voltage | 220 |
| Maximum Spindle Speed | 2000 |
| Number of Inch Threads | 40 |
| Number of Metric Threads | 53 |
| Minimum Threads Per Inch | 2 |
| Number of Spindle Speeds | 12 |
| Maximum Threads Per Inch | 56 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0012 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0252 |
| Minimum Cross Feed Rate Per Revolution (mm) | 0.0150 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000600 |
| Swing Over Cross Slide (Decimal Inch) | 9.4500 |
| Swing Over Gap (Decimal Inch) | 23.4200 |
| Machine Type | Precision Lathe |
