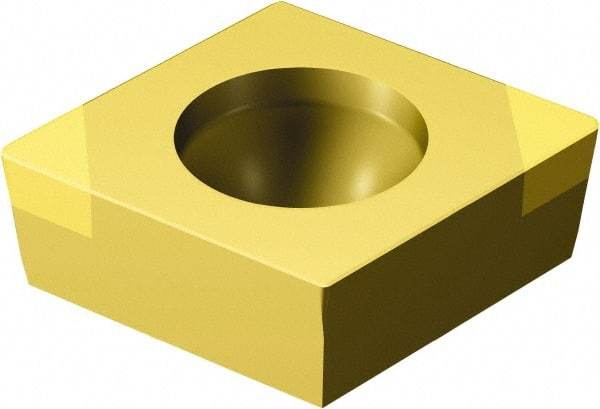

Sandvik Coromant - CCGW32.51 Grade 7115 CBN Turning Insert - 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 33614025
Brand: Sandvik Coromant
Model #: 7106074
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 32.51 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 7115 |
| ISO Number | CCGW09T304S01020F 7115 |
| Lead Angle | 95.000 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 2.58 |
| Insert Holding Method | Screw |
| Shape | Diamond |
