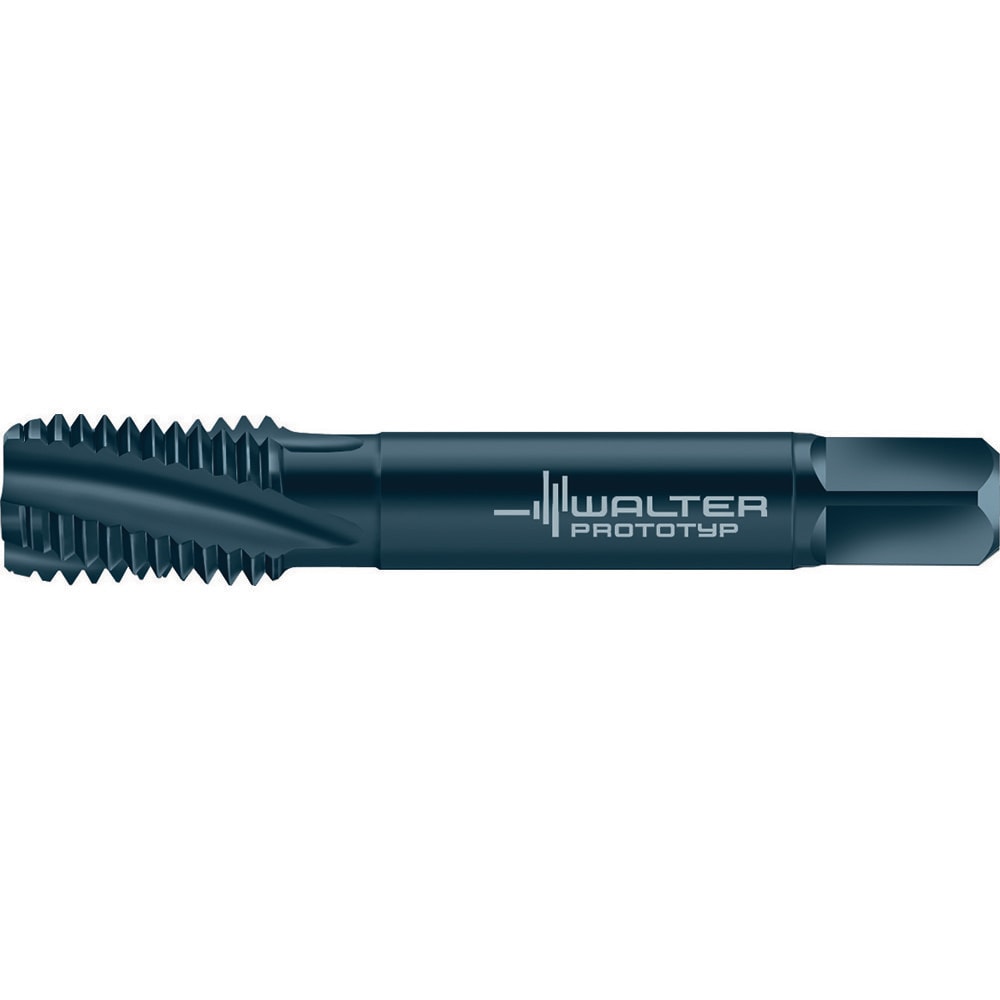

Spiral Flute STI Taps; Thread Size (Inch): 3/8-24; Overall Length (Decimal Inch): 3.1575; Overall Length (mm): 80.2000; Helix Angle: 15.00; Chamfer: Semi-Bottoming
Item #: 53434882
Brand: Walter-Prototyp
Model #: 8046418
Product Specifications
| Thread Size (Inch) | 3/8-24 |
| Overall Length (Decimal Inch) | 3.1575 |
| Overall Length (mm) | 80.2000 |
| Helix Angle | 15.00 |
| Chamfer | Semi-Bottoming |
| Thread Limit | H9 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Material | Powdered Metal |
| Thread Length (Decimal Inch) | 0.8661 |
| Thread Length (mm) | 22.00 |
| Shank Diameter (mm) | 8.2000 |
| Number Of Flutes | 4 |
| Class Of Fit | 3B |
| UNSPSC Code | 23241600 |
