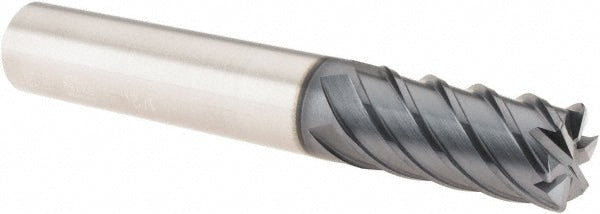

Corner Radius End Mill: 1/2" Dia, 1" LOC, 45 deg Helix, Corner Radius End, Series GM
Item #: 51020022
Brand: YG-1
Model #: GM668902
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 1 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Overall Length (Inch) | 6 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 6 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Extended |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 3.2500 |
| Reach Length (Inch) | 3-1/4 |
| Mill Diameter Tolerance | +0.0000/-0.0012 in |
| Shank Diameter Tolerance | +0.0000/-0.0003 in |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Material Grade | Micrograin |
| Series | GM |
| Material Application | Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | GM668902 |
