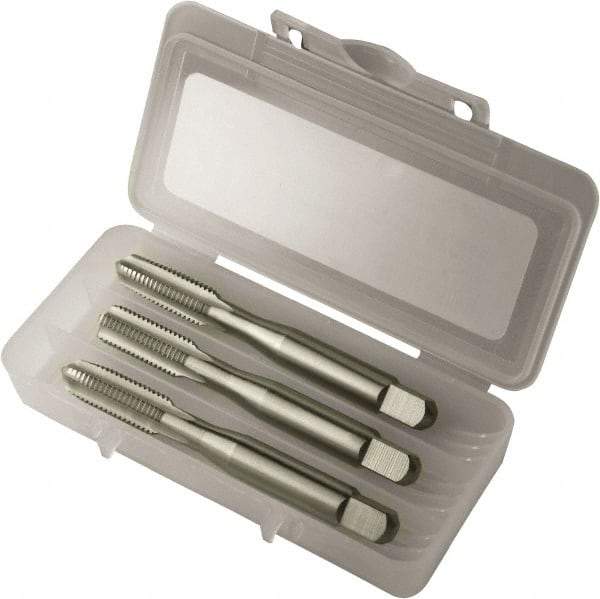

Vermont Tap & Die - 7/16-14 UNC, 4 Flute, Bottoming, Plug & Taper, Bright Finish, High Speed Steel Tap Set - Right Hand Cut, 3-5/32" OAL, 1-7/16" Thread Length, 3/3B Class of Fit, Series 3105 - Exact Industrial Supply

Vermont Tap & Die - 7/16-14 UNC, 4 Flute, Bottoming, Plug & Taper, Bright Finish, High Speed Steel Tap Set - Right Hand Cut, 3-5/32" OAL, 1-7/16" Thread Length, 3/3B Class of Fit, Series 3105


Item #: 33162264
Brand: Vermont Tap & Die
Model #: 342605
Exact Tooling IR#: 04

Features and Benefits

Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Thread Size 7/16-14
Number of Flutes 4
Chamfer Bottoming; Plug; Taper
Material High Speed Steel
Finish/Coating Bright
Thread Direction Right Hand
Class of Fit 3/3B
Thread Limit H3
Thread Length (Decimal Inch) 0.8800
Thread Length (Inch) 1-7/16
Overall Length (Decimal Inch) 3.1563
Overall Length (Inch) 3-5/32
Overall Length (mm) 80.17
Thread Standard UNC
Series/List 3105
Number of Pieces 3
