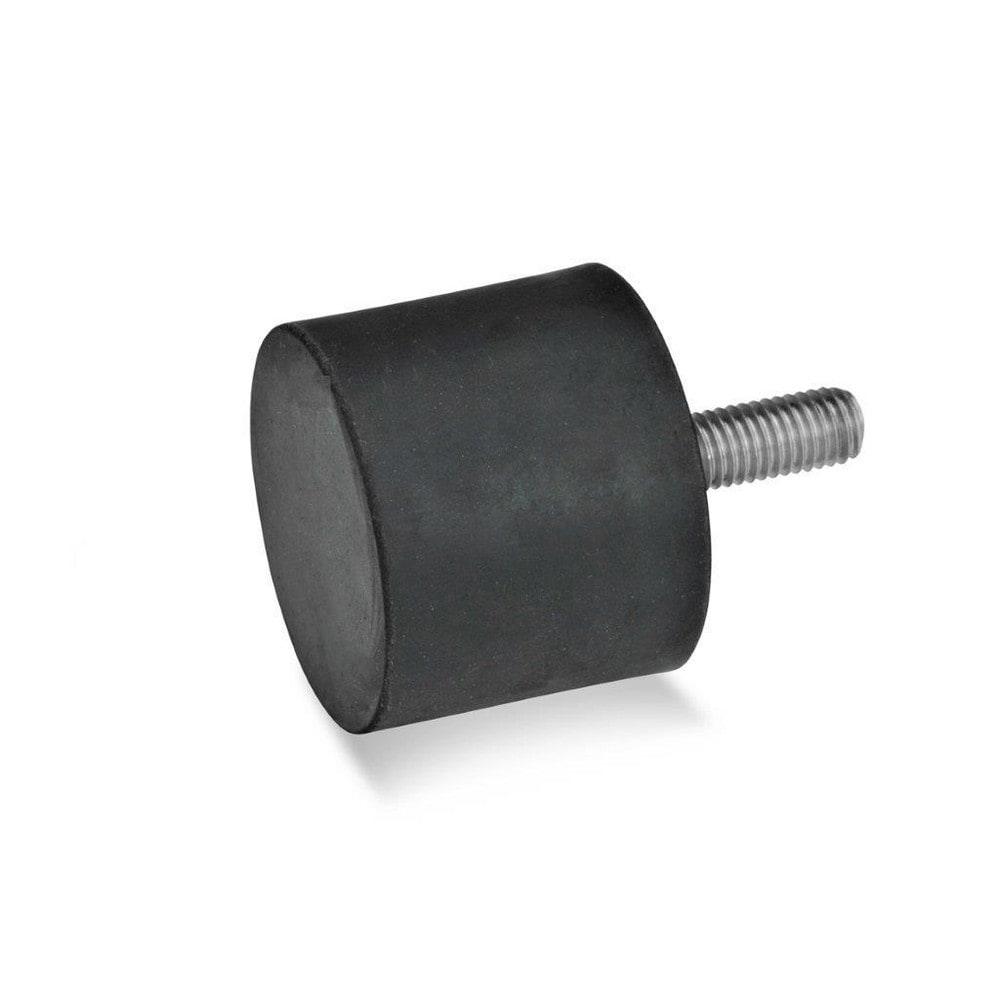

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 2500.00 N; Top Diameter: 40.00; Bottom Diameter: 40; Thread Size: M8x1.25; Overall Width: 40 mm
Item #: 71022958
Brand: J.W. Winco
Model #: 452-40-20-M8-S-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 2500.00 N |
| Top Diameter | 40.00 |
| Bottom Diameter | 40 |
| Thread Size | M8x1.25 |
| Overall Width | 40 mm |
| Overall Diameter | 40 mm |
| Thread Length (Decimal Inch) | 0.9100 |
| Deflection | 0.2000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 43 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 2500.00 N |
| Top Diameter | 40.00 |
| Bottom Diameter | 40 |
| Thread Size | M8x1.25 |
| Overall Width | 40 mm |
| Overall Diameter | 40 mm |
| Thread Length (Decimal Inch) | 0.9100 |
| Deflection | 0.2000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 43 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71022958 |
| Mfr Part # | 452-40-20-M8-S-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
